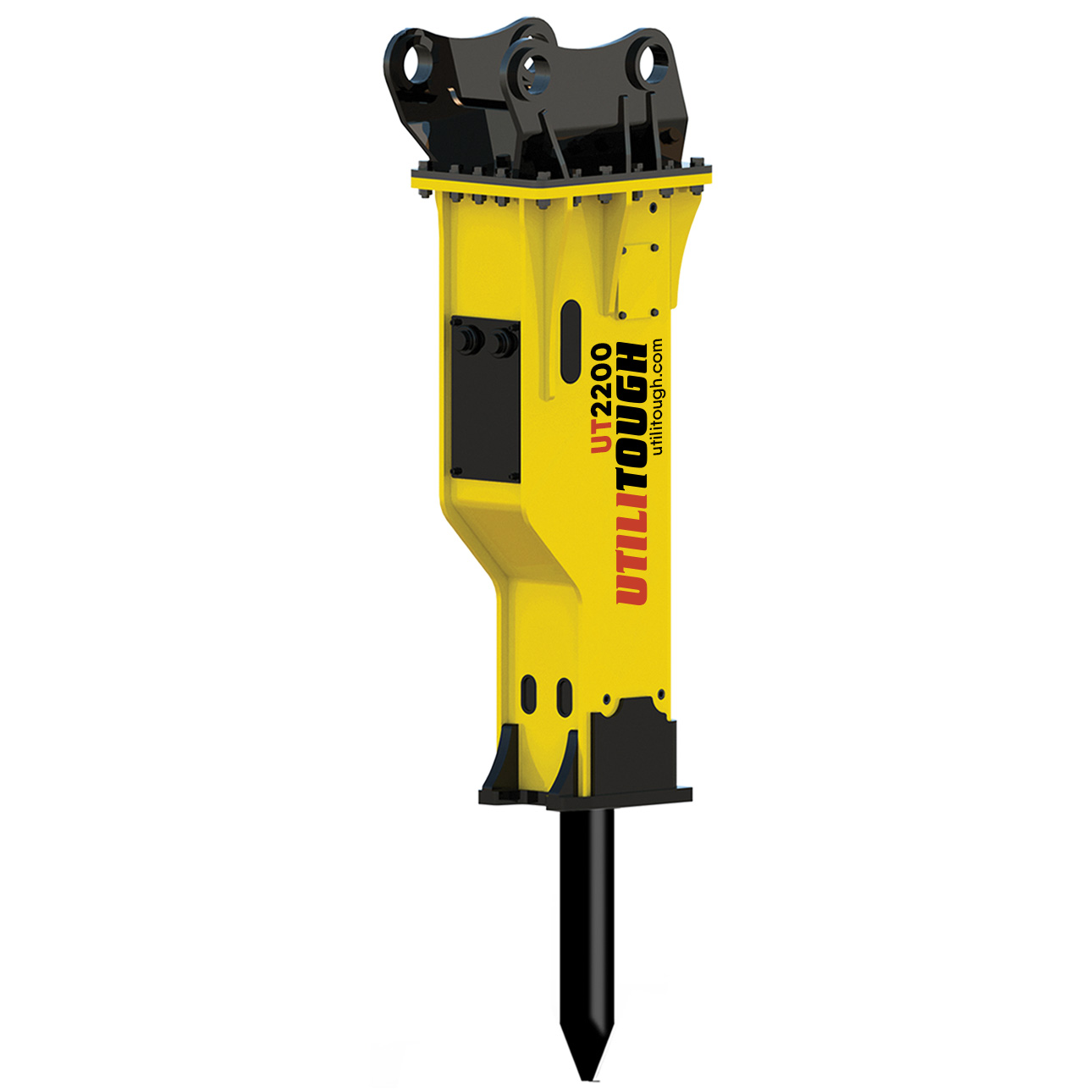

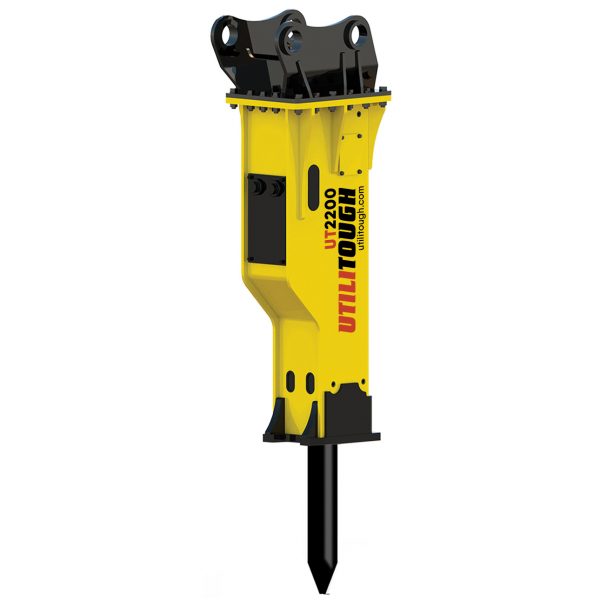

UT2200

  • 10~15 ton carrier weight range
  • 2,029 lb breaker operating weight
  • 18.4~33 gpm oil flow range
  • Hydraulic auto-lube system included
Energy Class (ft lbs)

2,200

Operation Weight (kgs)

920

Operation Weight (lbs)

2,029

Hose Length (Inches)

.75" x 100"

Operating Pressure (Kg/cm^2)

140~180

Operating Pressure (psi)

1,991~2,560

Tool Diameter (mm)

105

Tool Diameter (inches)

4.13

2nd Relief Setting Pressure (Kg/cm^2)

210

2nd Relief Setting Pressure (psi)

3,000

Required Oil Flow (LPM)

70~125

Required Oil Flow (GPM)

18.4~33

Blow Rate (Long Stroke BPM)

350~600

Blow Rate (Short Stroke BPM)

600~900

Accumulator Gas Pressure (Kg/cm^2)

55~60

Accumulator Gas Pressure (psi)

780~850

Suitable Carrier (tons)

10~15

Suitable Application

Backhoes

All Models Include

Tools
2 Working Tools
Adequate Length
Hydraulic Hoses and Fittings
Hose Set and
Gas Charging Kit
Repair Toolbox
Owner’s Manual
Parts Breakdown
Hydraulic auto-lube system standard on model UT1000 and up, and optional for UT225–UT850.

Features & Advantages

Durability

  • Longer chisel point and larger through-bolt to improve durability
  • Minimized welding on bracket fabrication process to strengthen durability

Performance

  • Applied two-step stroke and idle blow preventing structure system
  • Stronger impact power
  • Low-noise

Enhancements

  • Prevention of chisel stop pin loosening
  • No oil loss when changing the control valve
  • Lower vibration and tighter fastening between power cell and bracket
  • Models UT1000 and above include auto-greasing system

Convenience of Use

  • Operator-friendly design
  • Simple assembly and disassembly
  • Control valve can be replaced on-site with ease and speed
  • Easy maintenance (time and cost saving)
  • Longer lifetime of parts
View Internal Components and Features
