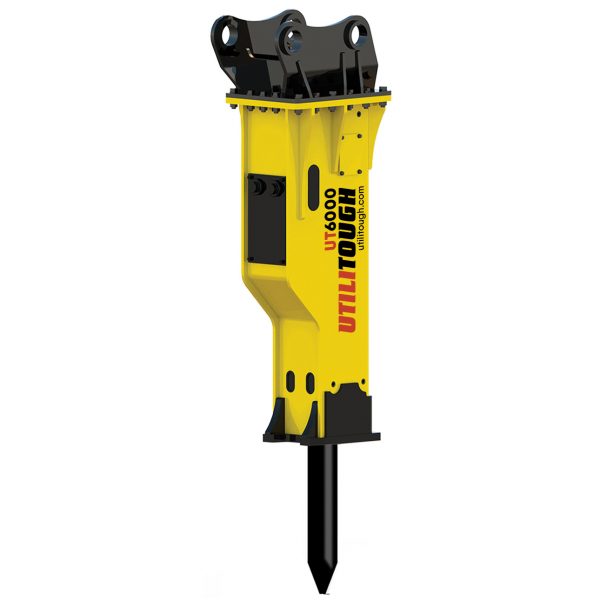

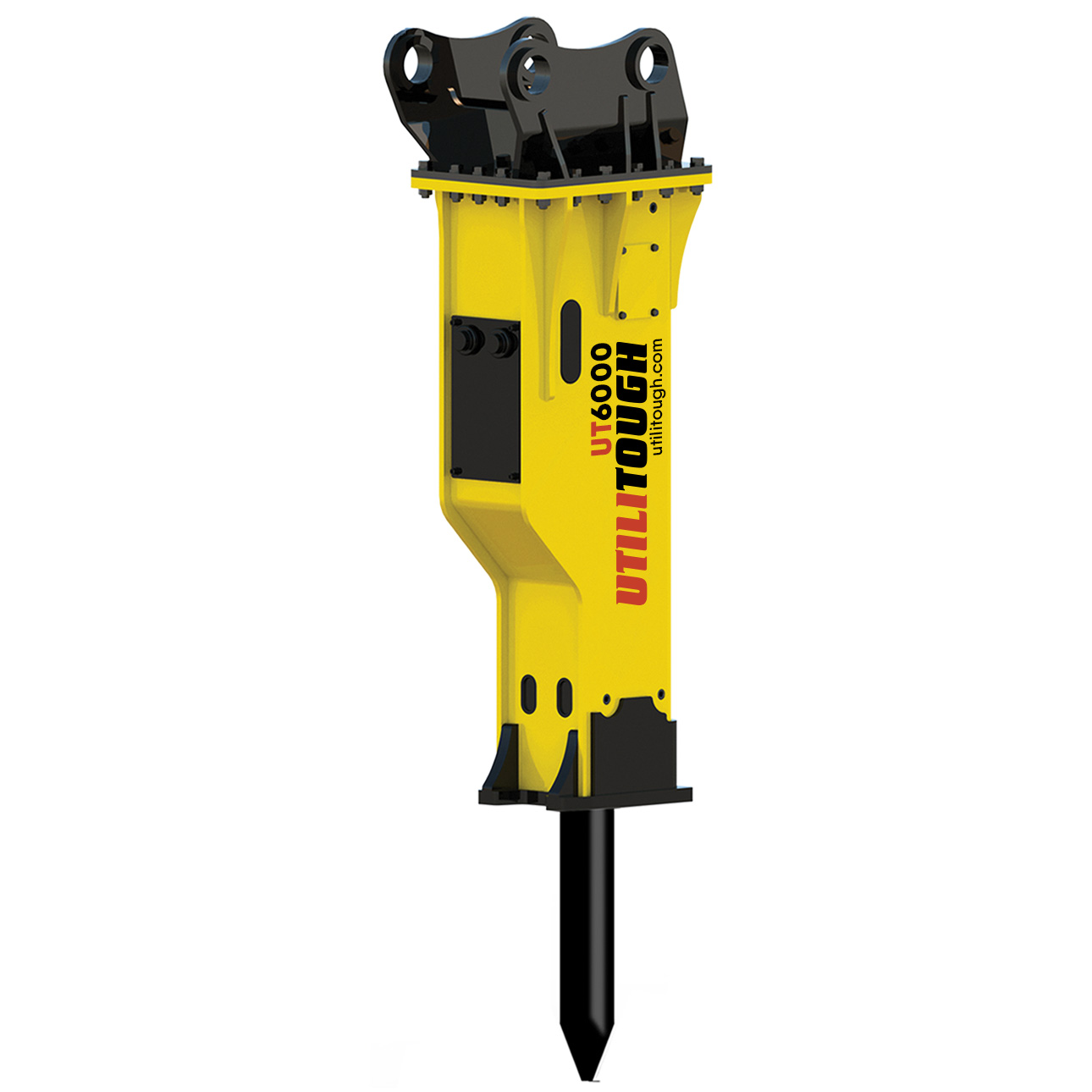

UtiliTough

UT6000

  • 24~36 ton carrier weight range
  • 5,511 lb breaker operating weight
  • 46.2~64.6 gpm oil flow range
  • Hydraulic auto-lube system included
Impact Energy Class (ft lb)

6,000

Operation Weight (lb)

5,511

Hose Length (in)

1.25 x 120

Blow Rate (long stroke bpm)

230~400

Blow Rate (short stroke bpm)

270~470

Required Oil Flow (gpm)

46.2~64.6

Operating Pressure (psi)

2,276~2,702

Second Relief Setting Pressure (psi)

3,300

Tool Diameter (in)

5.9

Accumulator Gas Pressure (psi)

780~850

Suitable Carrier (ton)

24~36

Suitable Carrier (lb)

48,000~72,000

Suitable Application

Mid and Large Excavators

All Models Include

Tools
2 Working Tools
Adequate Length
Hydraulic Hoses and Fittings
Hose Set and
Gas Charging Kit
Repair Toolbox
Owner’s Manual
Parts Breakdown
Hydraulic auto-lube system standard on model UT1000 and up, and optional for UT225–UT850.

Features & Advantages

Durability

  • Longer chisel point and larger through-bolt to improve durability
  • Minimized welding on bracket fabrication process to strengthen durability

Performance

  • Applied two-step stroke and idle blow preventing structure system
  • Stronger impact power
  • Low-noise

Enhancements

  • Prevention of chisel stop pin loosening
  • No oil loss when changing the control valve
  • Lower vibration and tighter fastening between power cell and bracket
  • Models UT1000 and above include auto-greasing system

Convenience of Use

  • Operator-friendly design
  • Simple assembly and disassembly
  • Control valve can be replaced on-site with ease and speed
  • Easy maintenance (time and cost saving)
  • Longer lifetime of parts
View Internal Components and Features

Inquire About This Product
