UtiliTough

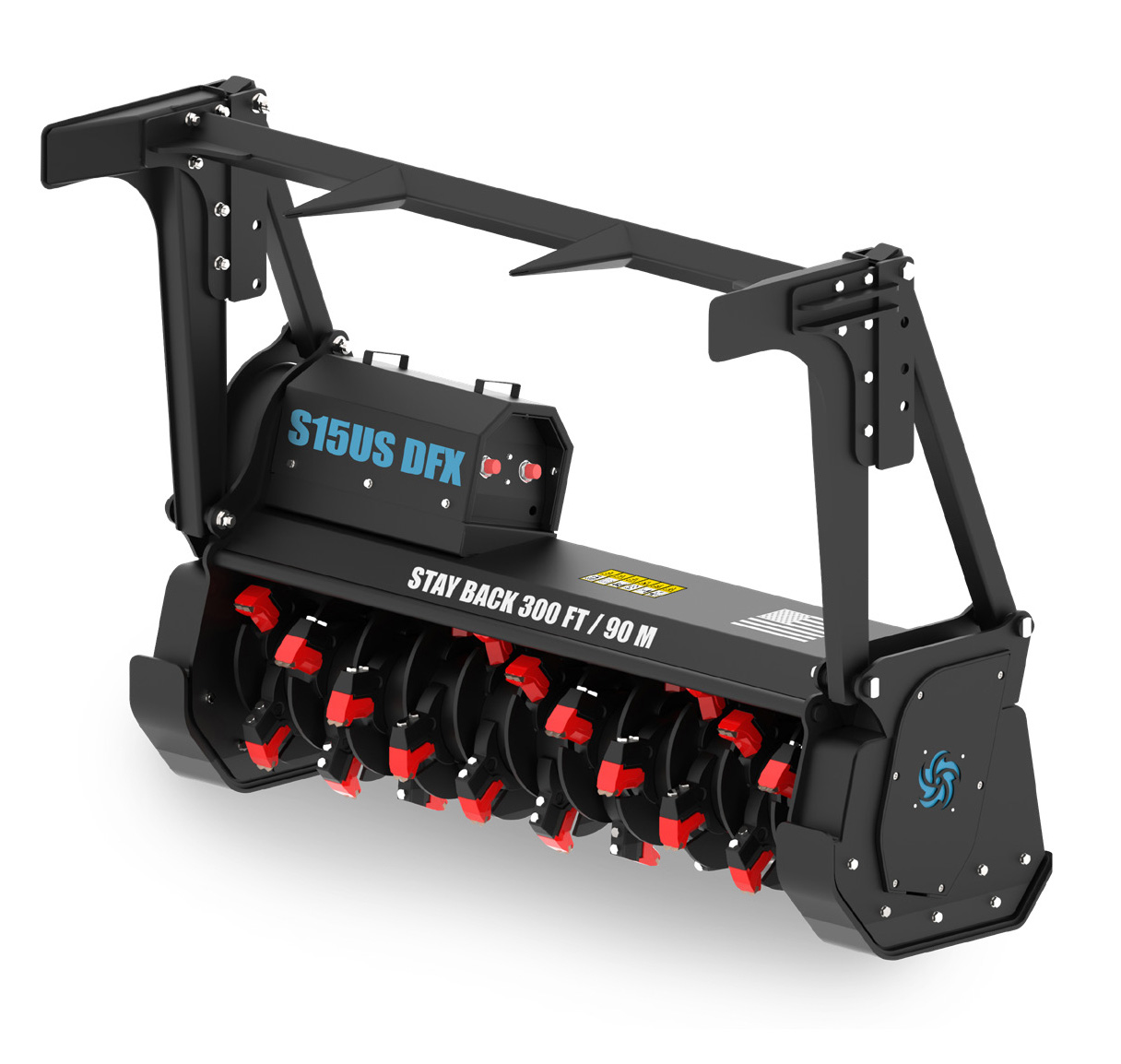

FEMAC S15US DFX 63

For skid steer loaders 90 - 150 hp Also available in a dedicated excavator version 15-30 ton

Horse Power

90-150

Working Width (in)

63

Dimensions (in)

76 x 46 x 63

Frame Height (in)

25

Weight (lb)

2850

Motor (cc)

107 VT

Flow Rate (gal/min)

32-53

Pressure (psi)

3500-5500

Rotor Diameter (in)

21

Teeth

32

Transmission Belts

1 (2.25 in)

Rotor RPM

2200

Distance From Ground (in)

1

Counter Blade Rows

3

TECHNICAL FEATURES AND STANDARD EQUIPMENT

  • Automatic variable displacement piston motor
  • Fixed universal hitch

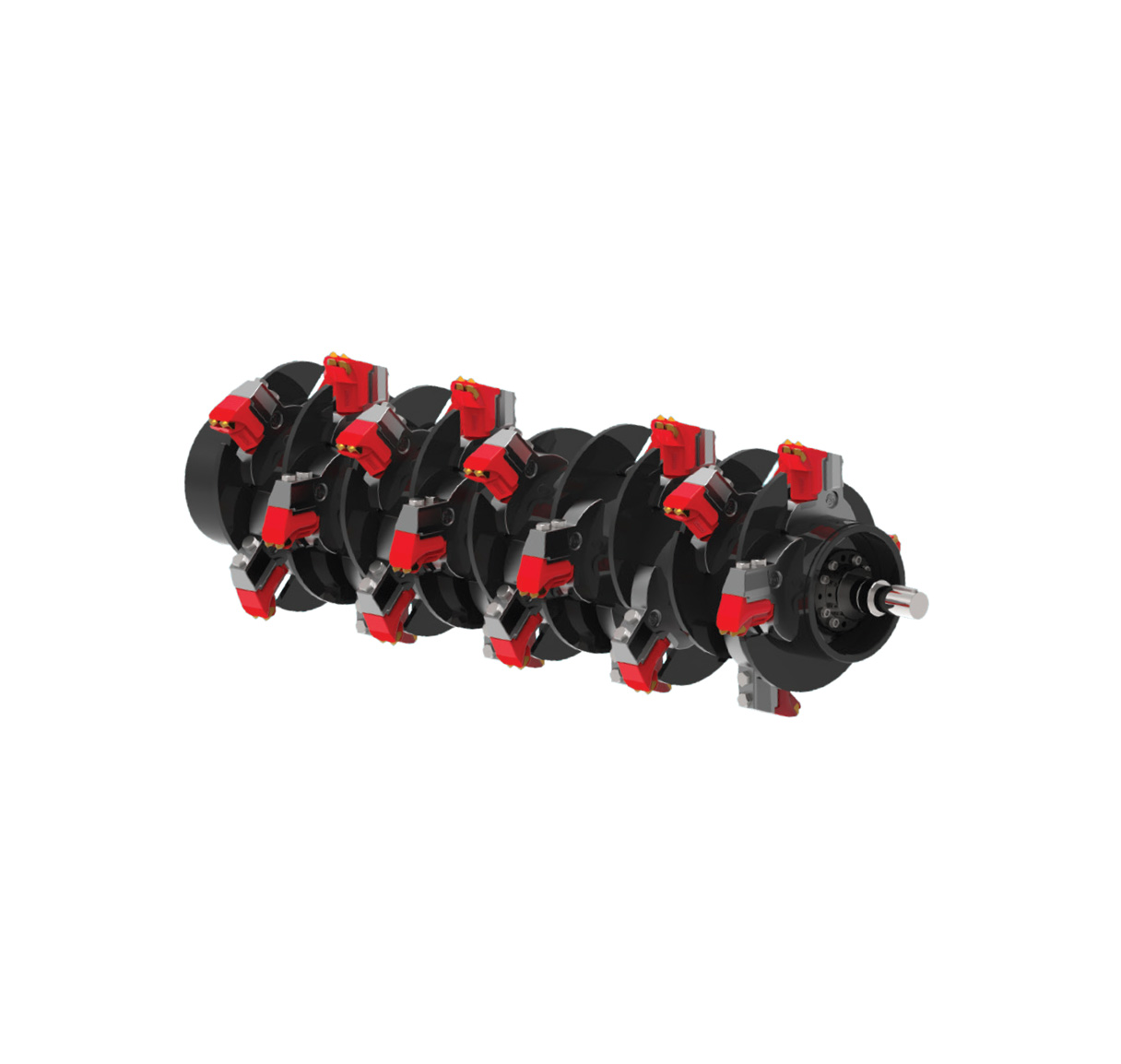

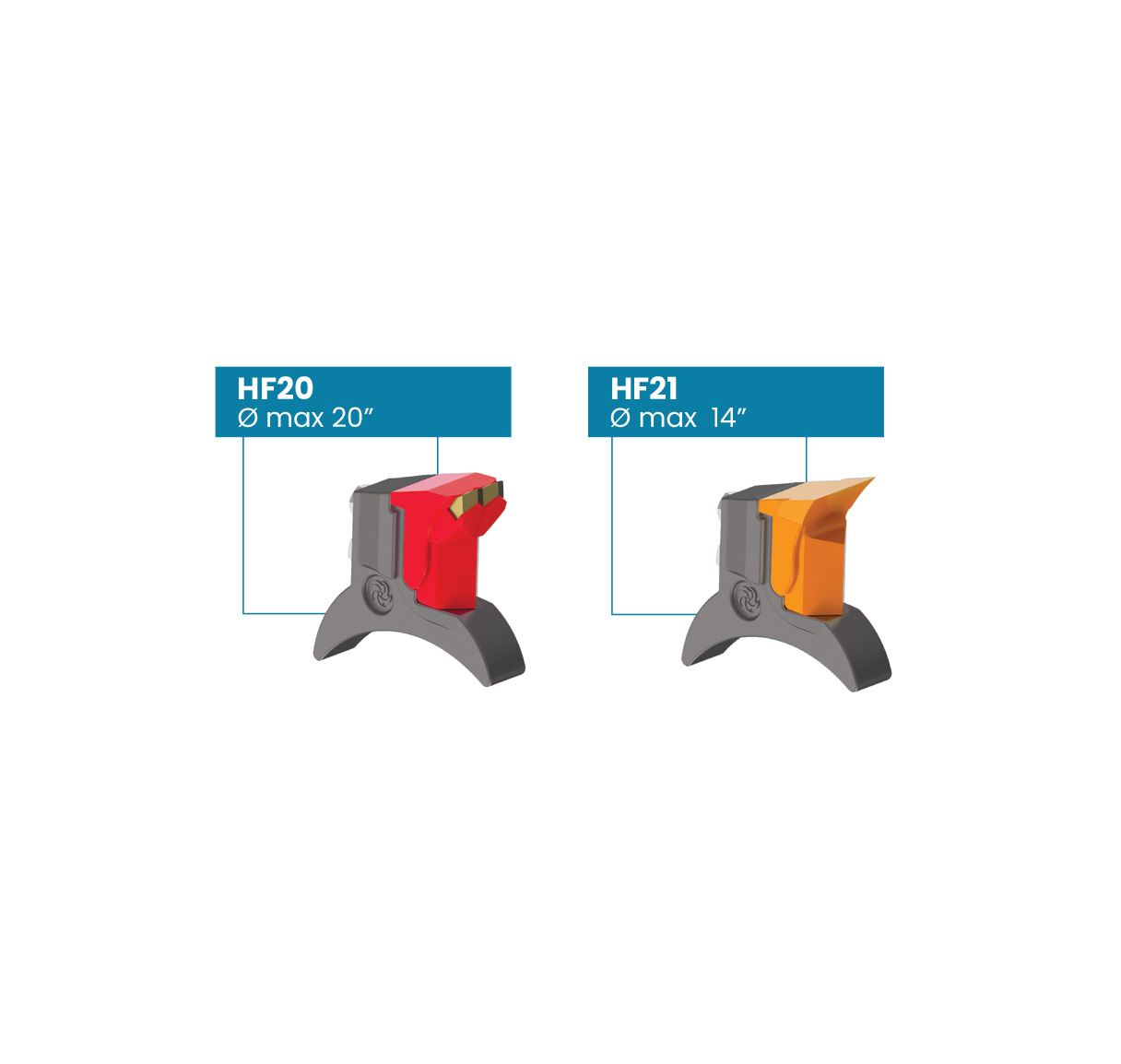

  • DFX Rotor with fixed teeth in widia or hardened blade with bite limiter
  • Helicoidal rotor with 3 screws
  • Forged and hardened counter-blades
  • Very hard anti-wear frame
  • Toothed high-performance belts transmission
  • Internally reinforced double-case body with interspace
  • Protective belts cover
  • Inside Rotor Supports with ”labyrinth” for the protection of the bearings from the impurities
  • Adjustable bearings of first quality
  • Manometer for working pressure control
  • Mechanical push frame
  • Low frame for better visibility



AUTOMATIC VARIABLE DISPLACEMENT PISTON MOTOR (ACCESSORY)

CC 75/107
gal/min 32-53

Inquire About This Product
