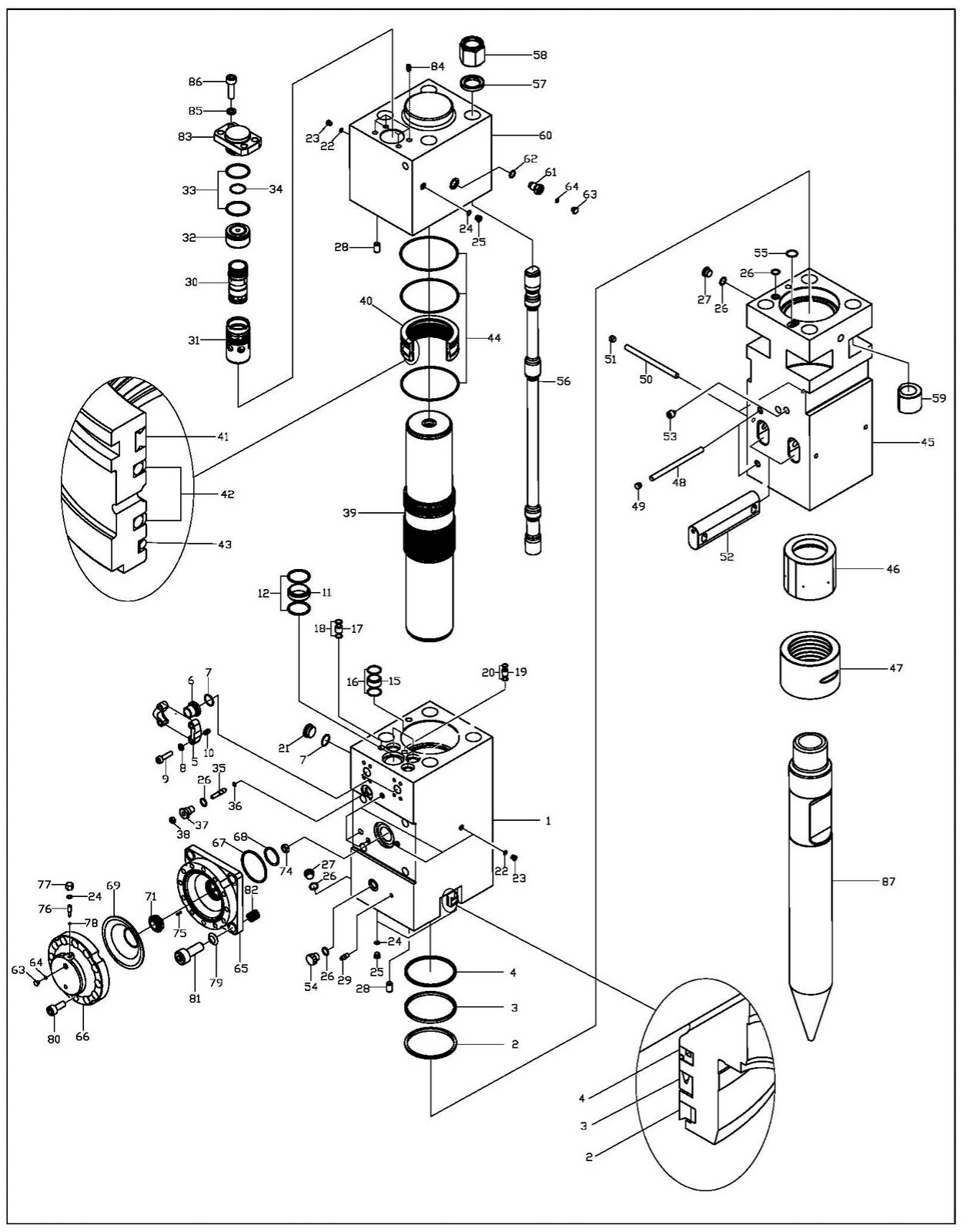

| POS | Part Num | Part Name | Qty | Notes | |
|---|---|---|---|---|---|
| 1 | UT-PHBA300C100 | Cylinder | 1 | ||
| 2 | UT-P50DSI16000 | Dust Seal | 1 | ||
| 3 | UT-P50ISI1600 | U-Packing | 1 | ||
| 4 | UT-P50HBY16000 | Buffer-Ring | 1 | ||
| 5 | UT-PSPF546000 | Split Flange(set) | 2 | ||
| 6 | UT-PFLF546000 | Flange Adapter Plug | 2 | ||
| 7 | UT-P50P0381B90 | O-Ring | 3 | 1BP38(FLANGE ADAPTER(2), RO Plug 1 1/4 (1) | |
| 8 | UT-P2M000014 | Spring Washer | 8 | M14(소켓용) | |
| 9 | UT-P1M1000140055 | Socket Bolt | 8 | M14*P2.0*L55 | |
| 10 | UT-P70014020 | Heli Sert | 8 | M14*L20 | |
| 11 | UT-P50TE752800 | Teflon Bushing | 1 | ||
| 12 | UT-P50P0651B90 | O-Ring | 2 | 1BP65(TEFLON) | |
| 15 | UT-P50TE462800 | Teflon Bushing | 3 | ||
| 16 | UT-P50P0401B90 | O-Ring | 6 | 1BP40(TEFLON) | |
| 17 | UT-P50TE242800 | Teflon Bushing | 1 | ||
| 18 | UT-P50P0201B90 | O-Ring | 2 | 1BP20(TEFLON) | |
| 19 | UT-P50TE202800 | Teflon Bushing | 1 | ||
| 20 | UT-P50P0161B90 | O-Ring | 2 | 1BP16(TEFLON) | |
| 21 | UT-P7000140 | RO Plug | 6 | PF1/4''-19 cylinder(5) / Head Cap (1) | |
| 22 | UT-P50P0111B90 | O-Ring | 6 | 1BP11 | |
| 23 | UT-P7001140 | RO Plug | 1 | PF 1 1/4''-19 Cylinder(1) | |
| 24 | UT-P50P0141B90 | O-Ring | 4 | 1B P14 | |
| 25 | UT-P7000380 | RO Plug | 3 | PF3/8''-19(cylinder2,headcap1) | |
| 26 | UT-P50P0241B90 | O-Ring | 5 | 1B P24 | |
| 27 | UT-P7000120 | RO Plug | 2 | PF1/2''-14 (cylinder1,f/head1) | |
| 28 | UT-PHBA22020350 | Cotter Pin | 2 | Ø20*35 | |
| 29 | UT-P9000140 | Grease Nipple | 1 | PT1/4''-19 | |
| 30 | UT-PHBA300VE00 | Valve | 1 | Ø69*147 | |
| 31 | UT-PHBA300VB00 | Valve Ing | 1 | Ø85*150 | |
| 32 | UT-PHBA300VC00 | Valve Cap | 1 | Ø85*50 | |
| 33 | UT-P50P0751B90 | O-Ring | 2 | 1B P75 | |
| UT-PHBA300VVST | Valve Set | 1 set | 30,31,32,33,34 | ||
| 34 | UT-P50P0501B90(A) | O-Ring | 1 | 1B P50A | |
| 35 | UT-PHBA220AD071 | Adjuster | 1 | Ø14*71 | |
| 36 | UT-P50P0101B90(A) | O-Ring | 1 | 1B P10A(ADJUSTER) | |
| 37 | UT-PHBA220AH046 | Adjuster Holder | 1 | Ø41*46 | |
| 38 | UT-PHBA220AN010 | Adjuster Nut | 1 | Ø22*10 | |
| 39 | UT-PHBA300P100 | Piston | 1 | Ø173.5*840 | |
| 40 | UT-PHBA300CB00 | Cylinder Ing | 1 | Ø205*70 | |
| 41 | UT-P50GAS15700 | Gas Seal | 1 | Ø157*169.8*10 | |
| 42 | UT-P50STE15700 | Step Seal | 2 | Ø157*172.5*6.1 | |
| 43 | UT-P50SLI15700 | Slide Seal | 1 | Ø157*168.4*5.3 | |
| 44 | UT-P50G1951B90 | O-Ring | 3 | 1BG195(C/ING2,H/CAP1) | |
| 45 | UT-PHBA300F100 | Front Head | 1 | ||
| 46 | UT-PHBA300RB00 | Round Ing | 1 | ||
| 47 | UT-PHBA300FC00 | Front Cover | 1 | ||
| 48 | UT-PHBA300SP00 | Stopper Pin | 2 | Ø17.5*240 | |
| 49 | UT-PHBA220RP00 | Rubber Plug | 2 | Ø20*15 | |
| 50 | UT-PHBA300SP00 | Stopper Pin | 2 | Ø21.5*250 | |
| 51 | UT-PHBA300RP00 | Rubber Plug | 2 | Ø30*25 | |
| 52 | UT-PHBA300CP00 | Chisel Pin | 2 | ||
| Adjuster Set | 1 set | 26,35,36,37,38 | |||
| 53 | UT-P6000140 | Hollow Plug | 1 | PT1/4'' | |
| 54 | UT-P5000120 | Air Plug | 1 | PF1/2'' | |
| 55 | UT-P50G0351B90 | O-Ring | 1 | 1B G35(F/HEAD1) | |
| 56 | UT-PHBA300TB00 | Through Bolt | 4 | ||
| 57 | UT-PHBA300TW00 | Through Washer | 4 | ||
| 58 | UT-PHBA300TN00 | T/bolt Top Nut | 4 | ||
| 59 | UT-PHBA300BN00 | T/bolt Bottom Nut | 4 | ||
| 60 | UT-PHBA300H100 | Head Cap | 1 | ||
| 61 | UT-P0900F120 | Gas Valve | 1 | PF1/2''-14 | |
| 62 | UT-P50P0181B90 | O-Ring | 1 | 1B P18(GAS VALVE1) | |
| 63 | UT-P0910M100 | Gas Valve Cap | 2 | M10 | |
| 64 | UT-P50P0081B90 | O-Ring | 2 | 1B P8 (GAS VALVE CAP2) | |
| 65 | UT-PHBA300A100 | Accumulator Body | 1 | 265*265*78 | |
| 66 | UT-PHBA300A200 | Accumulator Cover | 1 | Ø276*85 | |
| 67 | UT-P50P1151B90 | O-Ring | 1 | 1B P115(ACC BODY1) | |
| 68 | UT-P50F0624000 | Face Seal | 1 | 650F #62.4(ACC BODY1) | |
| 69 | UT-PHBA300AD00 | Diaphragm | 1 | ||
| UT-PHBA300TBST | Through Bolt Set | 4 set | 56,57,58,59 | ||
| Gas Valve Set | 1 set | 61,62,63,64 | |||
| Accumulator Set | 1 set | 24,63,64,65,66,67,68,69,71,74,75,76,77,78,79,80,81,82 | |||
| 71 | UT-PHBA300A400 | Poppet Valve | 1 | ||
| 74 | UT-PNM100016 | Poppet Valve Nut | 1 | ||
| 75 | UT-PHBA300A700 | Poppet Valve Pin | 1 | ||
| 76 | UT-PHBA220NP012 | Needle Pin | 1 | ||
| 77 | UT-PHBA220NC012 | Needle Cap | 1 | ||
| 78 | UT-P50P0051B90 | O-Ring | 1 | 1B P5(NEEDLE PIN1) | |
| 79 | UT-P1RLW3000 | Nord-Lock Washer | 4 | M30 | |
| 80 | UT-P1M1000200050 | Socket Bolt | 12 | ||
| 81 | UT-P1M1000300080 | Socket Bolt | 4 | M30*P3.5*L80(cylinder) | |
| 82 | UT-P70030036 | Heli Sert | 4 | M30*L36 | |
| 83 | UT-PHBA300VR00 | Valve Cover | 1 | ||
| 84 | UT-P70020030 | Heli Sert | 4 | M20*P2.5*L30(HEAD CAP) | |
| 85 | UT-P2MNR0020 | Nord-Lock Washer | 4 | M20(VALVE COVER) | |
| 86 | UT-P1M1000200065 | Socket Bolt | M20*P2.5*L65 | ||
| 87 | UT-PHBA300CT00 | Conical Point | 1 | ||
| 87 | UT-PHBA300MP00 | Moil Point | 1 | ||
| 87 | UT-PHBA300CC00 | Crosscut (Wedge H) | 1 | ||
| Poppet Valve Set | 1 set | 70,71,72,73,74,75 | |||
| Needle Pin Set | 1 set | 24,76,77,78 | |||
| Hammer Tool | |||||
| 87 | UT-PHBA300IL00 | In Line (Wedge V) | 1 | ||
| 87 | UT-PHBA300FE00 | Flat End | 1 |

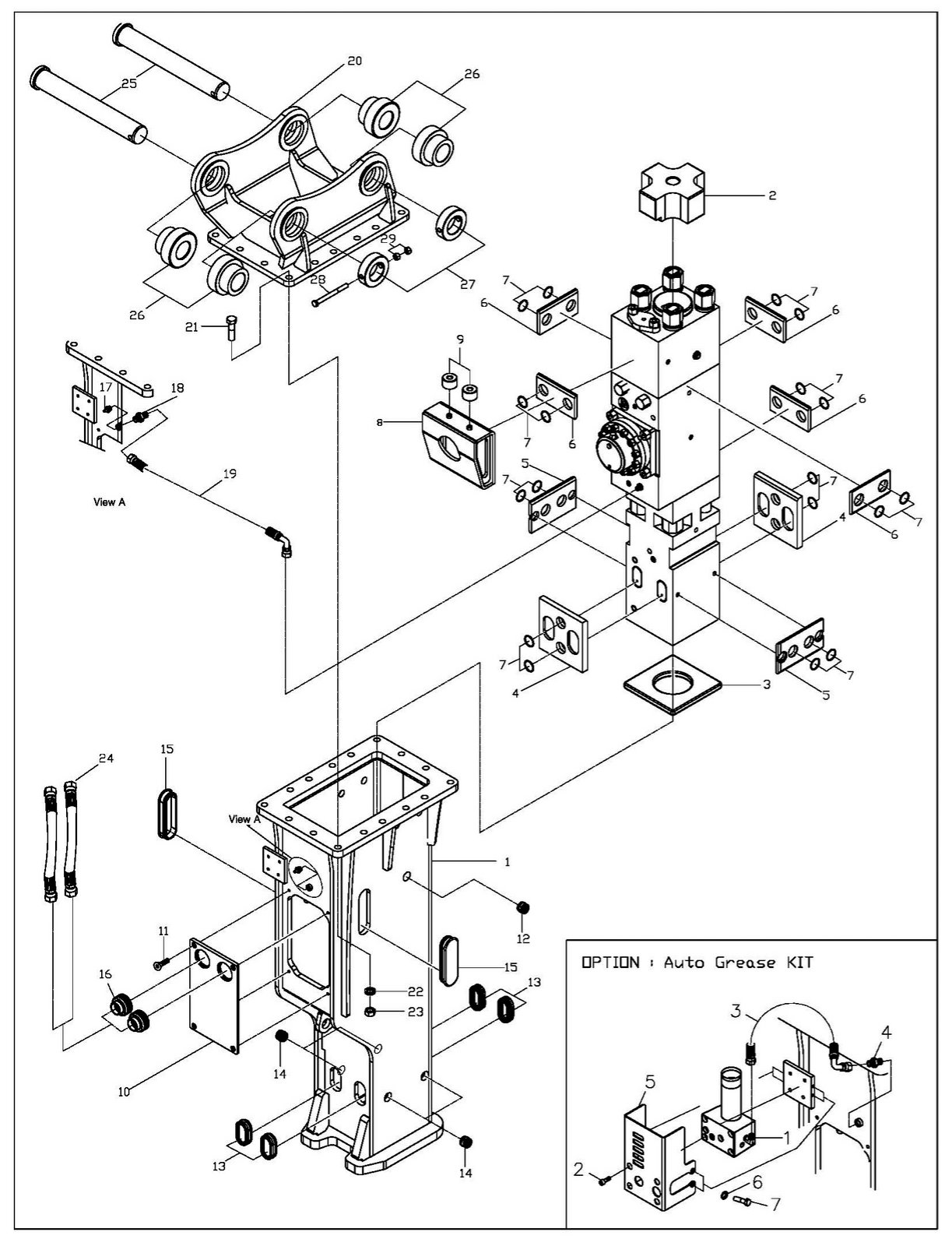

| POS | Part Num | Part Name | Qty | Notes | |
|---|---|---|---|---|---|
| 1 | UT-PHBTBH030-00-001-0 | Top Box Bracket | 1 | ||
| 2 | UT-PHBTBH030-00-002-0 | Upper Urethane | 1 | 300 x 344 x 125t | |
| 3 | UT-PHBTBH030-00-003-0 | Bottom Urethane | 1 | 327 x 327 x 25t | |
| 4 | UT-PHBTBH030-00-005-0 | Chisel Pin Pad | 2 | 280 x 280 x 15t | |
| 5 | UT-PHBTBH030-00-006-0 | Stop Pin Pad | 2 | 165 x 300 x 15t | |
| 6 | UT-PHBTBH022-00-007-0 | Power Cell Pad | 5 | 135 x 240 x 15t | |
| 7 | UT-P50P0441A90 | O-Ring | 18 | P44 | |
| 8 | UT-PHBTBH030-02-000-0 | Damper Bracket | 1 | ||
| 9 | UT-PHBTBH022-00-010-0 | Stop Damper Urethane | 2 | Φ60 x 40L | |
| 10 | UT-PHBTBH030-00-011-0 | Housing Cover | 1 | 300 x 510 x 15t | |
| 11 | UT-P1F1000120035 | Flat Head Socket Bolt | 4 | M12 x 35L(접시) | |
| 12 | UT-PHBTBH012-00-013-0 | Gas Cover | 1 | Φ53 x 32L | |
| 13 | UT-PHBTBH022-00-016-0 | Chisel Pin Cover | 4 | 65 x 114 x 32L | |
| 14 | UT-PHBTBH012-00-013-0 | Stop Pin Cover | 4 | Φ53 x 32L | |
| 16 | UT-PHBTBH030-00-019-0 | Hose Cover | 2 | Φ90 x 51L | |
| 17 | UT-P8000140 | Grease Nippel (out) | 1 | Not available when option is selected | |
| 18 | UT-P9000140 | Grease Adaptor (in) | 1 | pt1/4 x pf1/4 | |
| 19 | UT-PHSG104SS11000 | Grease Hose (in) | 1 | pf1/4(5#90°) x pf1/4(5#90°) x 1000L | |
| 1 | UT-PHBTBH022-00-020-0 | Auto Grease (C5) | 1 | ||
| 2 | UT-P1M1000120095 | Socket Bolt | 4 | M12 x 95L | |
| 3 | UT-PHSAG104SA10500 | Ag Hose | 1 | pf1/4(5#) x pf1/4(5#90°) x 500L | |
| 4 | UT-P9000140 | Grease Adaptor (out) | 1 | pt1/4 x pf1/4 | |
| 5 | UT-PHBTBH022-01-027-0 | Auto Grease Cover | 2 | ||
| 6 | UT-P1W1000120000 | Spring Washer | 4 | M12 | |
| 7 | UT-P1H1000120020 | Hex. Bolt | 4 | M12X20L | |
| 20 | UT-PHBTMC030-PC360-0 | Mounting Cap | 1 | PC360 | |
| 21 | UT-P1H1000360120 | Hex. Head Bolt | 16 | M36 x 120L | |
| 22 | UT-P1W1000360000 | Spring Washer | 16 | M36 | |
| 23 | UT-P1HY000360000 | Hex Nylon Nut | 16 | M36 | |
| 24 | UT-PHSHDF53SS3050 | Hydraulic Hose | 2 | ||
| 25 | UT-PHBMCH030-P0900630 | Bracket Pin (Arm, Link) | 2 | ||
| 26 | UT-PHBMCH030-B-180102 | Bracket Pin Ing | 4 | ||
| 27 | UT-PHBMCH030-S-139040 | Stop Ring | 2 | ||
| 28 | UT-P1H1000160200 | Hex. Bolt | 2 | ||
| 29 | UT-P1N1000160000 | Hex Nut | 4 |
