UT1200EX Parts

Back to parts catalog

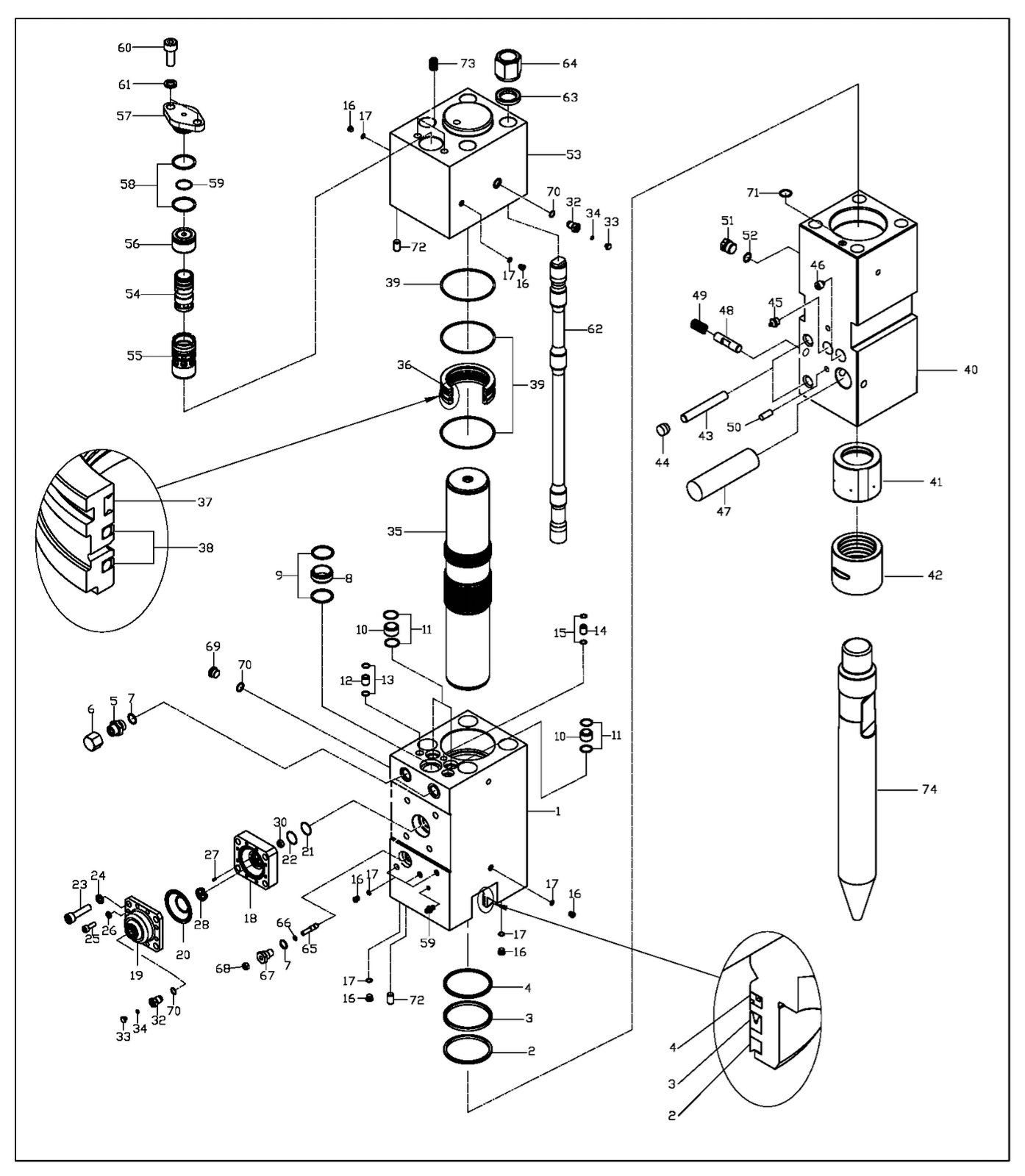

Power Cell

POS	Part Num	Part Name	Qty	Notes
1	UT-PHBA008C100	Cylinder	1	18,19,20,21,22,23,24,25,26,27,28,30,32,33,34	Read more
2	UT-P50DSI08500	Dust Seal	1	159x159x56.5L	Read more
3	UT-P50ISI08500	U-Packing	1	159x159x68.5L	Read more
4	UT-P50HBY08500	Buffer-Ring	1	∅126X28	Read more
5	UT-PF304U1161C	Hose Adapter	2	1B G40	Read more
6	UT-PU116100000	Union Cap	2	T3P 40	Read more
7	UT-P50P0241B90	O-Ring	3	M18X90L	Read more
8	UT-P50TE462800	Teflon Bushing	1	M18	Read more
9	UT-P50P0401B90	O-Ring	2	M12X35L	Read more
10	UT-P50TE262800	Teflon Bushing	3	M12	Read more
11	UT-P50P0220B90	O-Ring	6	61,64,65	Read more
12	UT-P50TE192200	Teflon Bushing	1	∅5X14	Read more
13	UT-P50P0151B90	O-Ring	2	∅42X12L	Read more
14	UT-P50TE122800	Teflon Bushing	1	M12X10	Read more
15	UT-P50P0091B90	O-Ring	2	51,52,53,54	Read more
16	UT-P7000140	RO Plug	8	PF 1/2"-14	Read more
17	UT-P50P0111B90	O-Ring	8	M10	Read more
		Accumulator Set	1 set	∅92.5X623	Read more
18	UT-PHBA008A100	Accumulator Body	1	∅120X55	Read more
19	UT-PHBA008A200	Accumulator Cover	1	83.5X93X7.5	Read more
20	UT-PHBA008AD00	Diaphragm	1	83.5X99X6	Read more
21	UT-P50G0401B90	O-Ring	1	1B G115	Read more
22	UT-P50T040T3P0	Backup Ring	1	175X175X469	Read more
23	UT-P1M1000180090	Socket Bolt	4	∅120X100	Read more
24	UT-P2M000018	Spring Washer	4	∅17.5X140L	Read more
25	UT-P1M1000120035	Socket Bolt	8	∅20X15	Read more
26	UT-P2M000012	Spring Washer	8	PT1/4	Read more
		Poppet Valve Set	1 set	PT1/4	Read more
27	UT-PHBA600A300	Poppet Valve Pin	1	∅37.5X140L	Read more
28	UT-PHBA600A400	Poppet Valve (A)	1	∅10X50L	Read more
30	UT-PNM100012	Poppet Valve Nut	1	∅10X50L	Read more
		Gas Valve Set	1 set	∅5X40L	Read more
32	UT-P0900F120	Gas Valve	1	PF 3/8"-19	Read more
33	UT-P0900M100	Gas Valve Cap	2	1B P14	Read more
34	UT-P50P0081B90	O-Ring	2	175X175X242L	Read more
35	UT-PHBA008P100	Piston	1	54,55,56,57,59,61,61,73	Read more
36	UT-PHBA008CB00	Cylinder Bushing	1	∅37.7X79L	Read more
37	UT-P50GAS08300	Gas Seal	1	∅50X68L	Read more
38	UT-P50STE08300	Step Seal	2	∅50X49L	Read more
39	UT-P50G1151B90	O-Ring	3	67X137X35L	Read more
40	UT-PHBA008F100	Front Head	1	1B G45	Read more
42	UT-PHBA008FC00	Front Cover	1	1B P30(외압용)	Read more
43	UT-PHBA120SP00	Stopper Pin	2	M24XP3X60L	Read more
44	UT-PHBA600RP00	Rubber Plug	2	M24(소켓용)	Read more
45	UT-P8000140	Grease Nipple	1	46,47,48,49	Read more
46	UT-P6000140	Hollow Plug	2	∅30X767	Read more
47	UT-PHBA008CP00	Chisel Pin	1	∅53X6.3	Read more
48	UT-PHBA400CS00	Chisel Stopper Pin	1	∅52X50	Read more
49	UT-PHBA400S000	Spring	1	7,25.26,27,28	Read more
50	UT-PHBA400SP00	Spring Pin	1	∅14X61	Read more
51	UT-P5000380	Air Plug	1	1B P10A	Read more
52	UT-P50G0141B90	O-Ring	1	∅41X41	Read more
53	UT-PHBA008H100	Head Cap	1	∅22X10	Read more
	UT-PHBA800VVST	Valve Set	1 set	PF 1/2"-14	Read more
54	UT-PHBA008VE00	Valve	1	1B P18	Read more
55	UT-PHBA008VB00	Valve Bushing	1	1B P12(내압용)	Read more
56	UT-PHBA008VC00	Valve Cap	1	∅14X30L	Read more
57	UT-PHBA008VR00	Valve Cover	1		Read more
58	UT-P50G0451B90	O-Ring	2		Read more
59	UT-P50P0300B90	O-Ring	1		Read more
60	UT-PM1000240055	Socket Bolt	2		Read more
61	UT-P2MNR0024	Nord-Rock Washer	2		Read more
	UT-PHBA800TBST	Through Bolt Set	1 set		Read more
62	UT-PHBA008TB00	Through Bolt	4		Read more
63	UT-PHBA008TW00	Through Washer	4		Read more
64	UT-PHBA008TN00	T/bolt Top Nut	4		Read more
		Adjuster Set	1 set		Read more
65	UT-PHBA008AD061	Adjuster	1		Read more
66	UT-P50P0101B90(A)	O-Ring	1		Read more
67	UT-PHBA008AH046	Adjuster Holder	1		Read more
68	UT-PHBA220AN010	Adjuster Nut	1		Read more
69	UT-P7000120	RO Plug	1		Read more
70	UT-P50P0181B90	O-Ring	3		Read more
71	UT-P50P0121B90	O-Ring	1		Read more
72	UT-PHBA12014300	Cotter Pin	2		Read more
73	UT-P70024036	Heli Sert	2		Read more
		Hammer Tool			Read more
74	UT-PHBA008CT00	Conical Point	1		Read more
74	UT-PHBA008MP00	Moil Point	1		Read more
74	UT-PHBA008CC00	Crosscut (Wedge H)	1		Read more
74	UT-PHBA008IL00	In Line (Wedge V)	1		Read more
74	UT-PHBA008FE00	Flat End	1		Read more
	UT-PHBA008SK001	Seal Kit, Complete	1 set		Read more

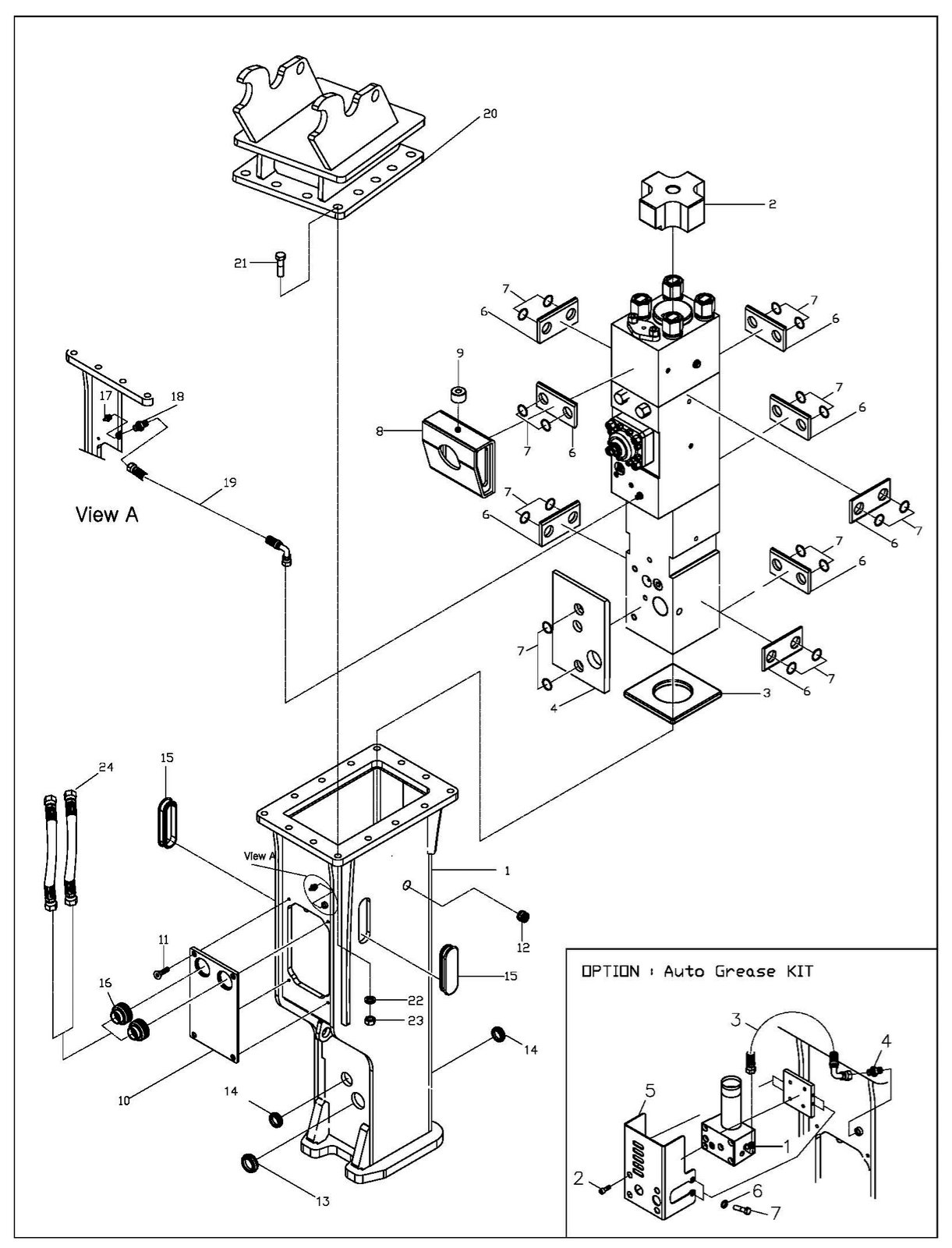

Top Box

POS	Part Num	Part Name	Qty	Notes
1	UT-PHBTBH008-00-001-0	Top Box Bracket	1	365X518X1252	Read more
2	UT-PHBTBH008-00-002-0	Upper Urethane	1	165X192X78t	Read more
3	UT-PHBTBH008-00-003-0	Bottom Urethane	1	196X196X15t	Read more
4	UT-PHBTBH008-00-005-0	Chisel Pin Pad	2	250X155X15t	Read more
6	UT-PHBTBH008-00-007-0	Power Cell Pad	8	90X150X15t	Read more
7	UT-P50P0341A90	O-Ring	18	1A P34	Read more
8	UT-PHBTBH008-02-000-0	Damper Bracket	1	195X84X168	Read more
9	UT-PHBTBH004-00-010-0	Stop Damper Urethane	1	∅40X20	Read more
10	UT-PHBTBH008-00-011-0	Housing Cover	1	347X174X15t	Read more
11	UT-P1F1000120035	Flat Head Socket Bolt	4	M12X35L	Read more
12	UT-PHBTBH006-00-016-0	Gas Cover	1	∅53 X 32L	Read more
13	UT-PHBTBH006-00-016-0	Chisel Pin Cover	1	∅53 X 32L	Read more
14	UT-PHBTBH008-00-027-0	Chisel Pin Cover (B)	2	∅33 X 19L	Read more
15	UT-PHBTBH006-00-018-0	Side Adapter Cover	2	74X214X33.5t	Read more
16	UT-PHBTBH006-00-019-0	Hose Cover	2	∅75X51L	Read more
17	UT-P8000140	Grease Nippel (out)	1	Not available when option is selected	Read more
18	UT-P9000140	Grease Adaptor (in)	1		Read more
19	UT-PHSG104SS10600	Grease Hose (in)	1		Read more
20	UT-PHBTMC-008-KX08-0	Mounting Cap	1	KX080	Read more
21	UT-P1H1000180065	Hex. Head Bolt	14	M18X65L	Read more
22	UT-P1W1000240000	Spring Washer	14	M18	Read more
23	UT-P1HY000240000	Hex Nylon Nut	14	M18	Read more
24	UT-PHSHD304SS254044	Hydraulic Hose	2		Read more
1	UT-PHBTBH008-00-028-0	Auto Grease (S2)	1		Read more
2	UT-P1M1000100085	Socket Bolt	4		Read more
3	UT-PHSAG104SA10500	Ag Hose	1		Read more
4	UT-P9000140	Grease Adaptor (Out)	1		Read more
