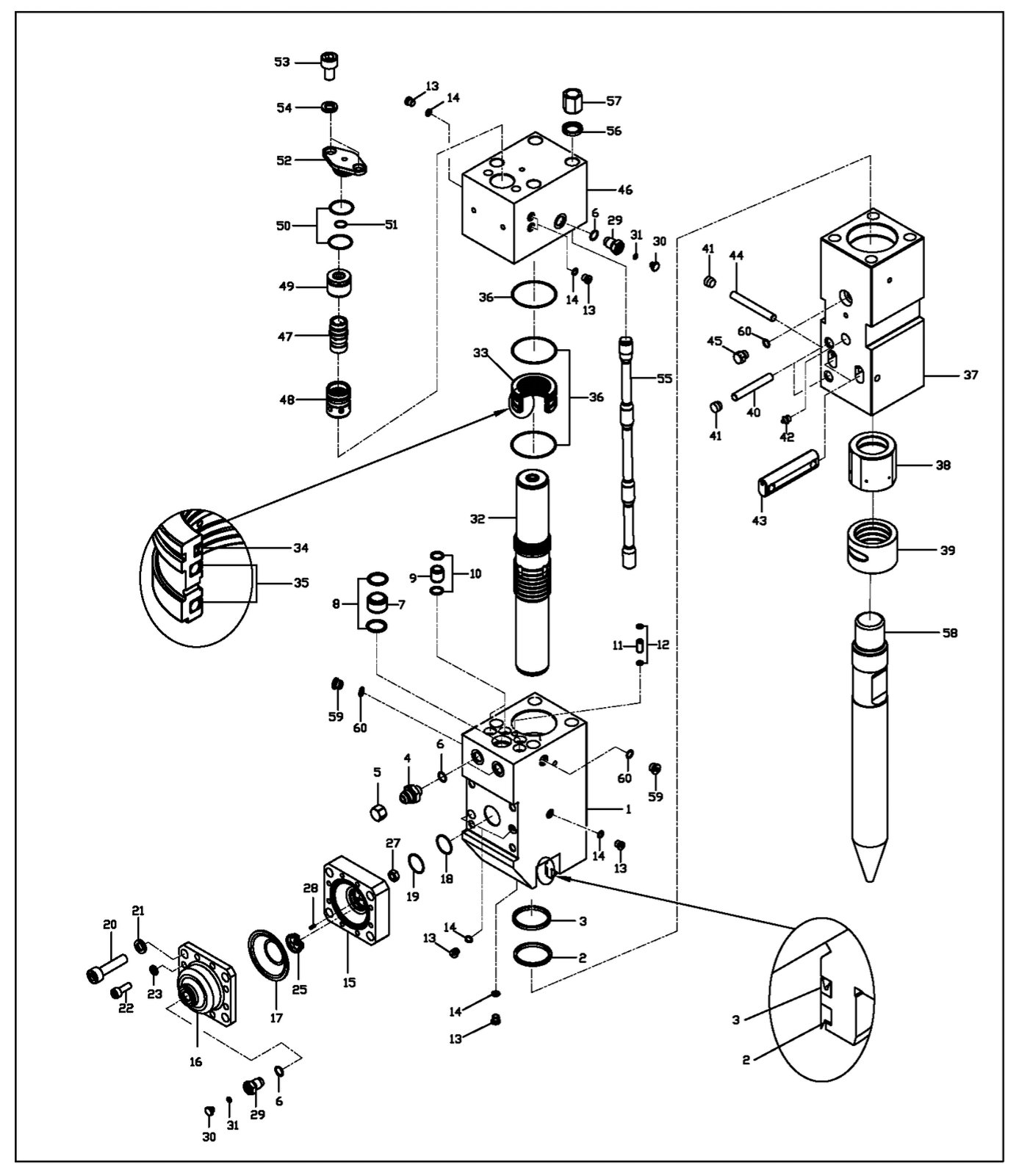

| POS | Part Num | Part Name | Qty | Notes | |
|---|---|---|---|---|---|
| 1 | HBA600C100 | Cylinder | 1 | ||
| 2 | 50DSI07000 | Dust Seal | 1 | ||
| 3 | 50ISI07000 | U-Packing | 1 | ||
| 4 | F102U1161C | Hose Adapter | 2 | ||
| 5 | U116100000 | Union Cap | 2 | ||
| 6 | 50P0181B90 | O-Ring | 4 | P18 | |
| 7 | 50TE412800 | Teflon Bushing | 1 | Φ41x28 | |
| 8 | 50P0351B90 | O-Ring | 2 | P35 | |
| 9 | 50TE262800 | Teflon Bushing | 4 | Φ26x28 | |
| 10 | 50P0221B90 | O-Ring | 8 | P22 | |
| 11 | 50TE122800 | Teflon Bushing | 1 | Φ12x28 | |
| 12 | 50P0091B90 | O-Ring | 2 | P9 | |
| 13 | 7000140 | RO Plug | 7 | ||
| 14 | 50P0111B90 | O-Ring | 7 | P11 | |
| 15 | HBA600A100 | Accumulator Body | 1 | ||
| 16 | HBA600A200 | Accumulator Cover | 1 | ||
| 17 | HBA600AD00 | Diaphragm | 1 | ||
| 18 | 50G0401B90 | O-Ring | 1 | G40 | |
| 19 | 50T040T3P0 | Back up Ring | 1 | T40 | |
| 20 | 1M1000180080 | Socket Bolt | 4 | 18x80L | |
| 21 | 2M000018 | Spring Washer | 4 | 18 | |
| 22 | 1M100010035 | Socket Bolt | 8 | 10x35L | |
| 23 | 2M000012 | Spring Washer | 8 | ||
| 25 | HBA600A400 | Poppet Valve | 1 | ||
| 27 | NM100012 | Poppet Valve Nut | 1 | ||
| 28 | HBA600A600 | Poppet Valve Pin | 1 | ||
| Accumulator Set | 1 set | 6,15,16,17,18,19,20,21,22,23,25,27,28,29,30,31 | |||
| Poppet Valve Set | 1 set | ||||
| 29 | 0900F120 | Gas Valve | 2 | ||
| 30 | 0910M100 | Gas Valve Cap | 2 | ||
| 31 | 50P0081B90 | O-Ring | 2 | P8 | |
| 32 | HBA600P100 | Piston | 1 | ||
| 33 | HBA600CB00 | Cylinder Bushing | 1 | ||
| 34 | 50GAS06800 | Gas Seal | 1 | ||
| 35 | 50STE06800 | Step Seal | 2 | ||
| 36 | 50G0901B90 | O-Ring | 3 | ||
| 37 | HBA600F100 | Front Head | 1 | ||
| 38 | HBA600RB00 | Round Bushing | 1 | ||
| 39 | HBA600FC00 | Front Cover | 1 | ||
| 40 | HBA600SP00 | Stopper Pin | 2 | ||
| 41 | HBA600RP00 | Rubber Plug | 3 | Φ20x15L | |
| 42 | 8000140 | Grease Nipple | 1 | 1/4 | |
| 43 | HBA600CP00 | Chisel Pin | 2 | ||
| 44 | HBA600CS00 | Chisel Stopper Pin | 1 | ||
| 45 | 5000380 | Air Plug | 1 | ||
| 46 | HBA600H100 | Head Cap | 1 | ||
| Gas Valve Set | 2 set | 6,29,30,31 | |||
| HBA600VVST | Valve Set | 1 set | 47,48,49,50,51 | ||
| 47 | HBA600VE00 | Valve | 1 | ||
| 48 | HBA600VB00 | Valve Bushing | 1 | ||
| 49 | HBA600VC00 | Valve Cap | 1 | ||
| 50 | 50G0451B90 | O-Ring | 2 | G45 | |
| 51 | 50P0201B90 | O-Ring | 1 | P20 | |
| 52 | HBA600VR00 | Valve Cover | 1 | ||
| 53 | 1M1000200040 | Socket Bolt | 2 | ||
| 54 | 2MNR0020 | Nord-Rock Washer | 2 | 20 | |
| 55 | HBA600TB00 | Through Bolt | 4 | ||
| 56 | HBA600TW00 | Through Washer | 4 | ||
| 57 | HBA600TN00 | Through Bolt Top Nut | 4 | ||
| 58 | HBA600CT00 | Conical Point | 1 | ||
| 58 | HBA600MP00 | Moil Point | |||
| 58 | HBA600WH00 | Crosscut (Wedge H) | |||
| 58 | HBA600WV00 | In Line (Wedge V) | |||
| 58 | HBA600FE00 | Flat End | |||
| 59 | 7000380 | RO Plug | 2 | ||
| 60 | 50P0141B90 | O-Ring | 3 | P14 | |
| HBA600TBST | Through Bolt Set | 1 set | 55,56,57 | ||
| Hammer Tool | |||||
| HBA600SK001 | Seal Kit, Complete | 1 set |

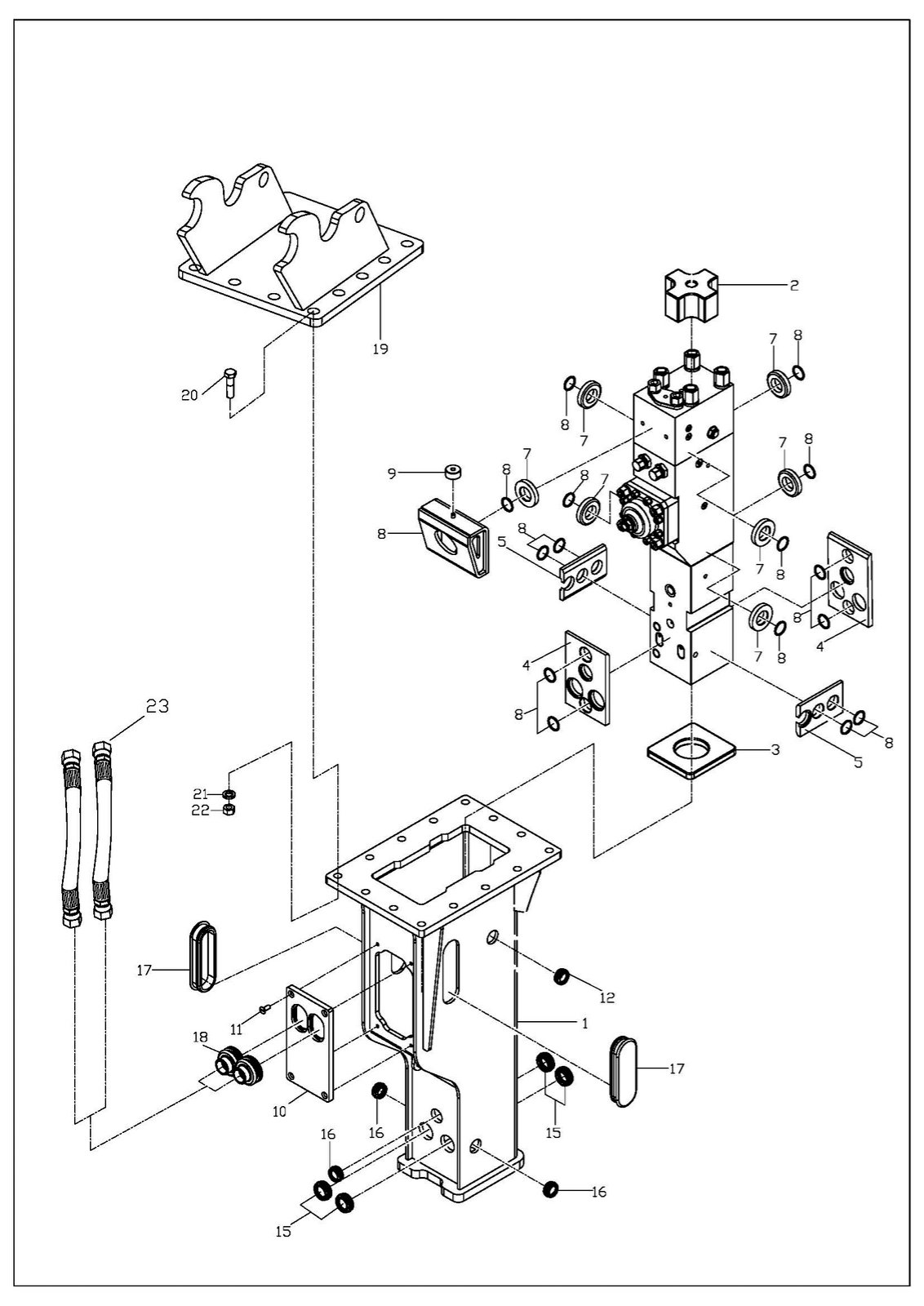

| POS | Part Num | Part Name | Qty | Notes | |
|---|---|---|---|---|---|
| 1 | HBTBH006-00-001-0 | Top Box Bracket | 1 | ||
| 2 | HBTBH006-00-002-0 | Upper Urethane | 1 | ||
| 3 | HBTBH006-00-003-0 | Bottom Urethane | 1 | ||
| 4 | HBTBH006-00-005-0 | Chisel Pin Pad | 2 | ||
| 5 | HBTBH006-00-006-0 | Stop Pin Pad | 2 | ||
| 6 | HBTBH006-00-007-0 | Power Cell Pad | 7 | ||
| 7 | 50P0341A90 | O-Ring | 14 | P34 | |
| 8 | HBTBH006-02-000-0 | Damper Bracket | 1 | ||
| 9 | HBTBH006-00-010-0 | Stop Damper Urethane | 1 | ||
| 10 | HBTBH006-00-011-0 | Housing Cover | 1 | ||
| 11 | 1F1000100025 | Flat Head Socket Bolt | 4 | M10x25L | |
| 12 | HBTBH006-00-013-0 | Gas Cover | 1 | Φ53x32L | |
| 13 | 1H1000100020 | Hex. Head Bolt | 4 | Φ53x32L | |
| 14 | 1W1000100000 | Spring Washer | 4 | Φ43x19L | |
| 15 | HBTBH006-00-016-0 | Chisel Pin Cover | 4 | ||
| 16 | HBTBH006-00-017-0 | Grease Cover | 3 | ||
| 17 | HBTBH006-00-018-0 | Side Adapter Cover | 2 | ||
| 18 | HBTBH006-00-019-0 | Hose Cover | 2 | ||
| 19 | HBTMC006-K161-0 | Mounting Cap | 1 | KX161 | |
| 20 | 1H1000180065 | Hex Head Bolt | 14 | M18x65L | |
| 21 | 1W1000180000 | Spring Washer | 14 | M18 | |
| 22 | 1HY000180000 | Hex Nylon Nut | 14 | M18 | |
| 23 | HSHD304SS190044 | Hydraulic Hose | 2 |
