UtiliTough

UT4500EX Parts

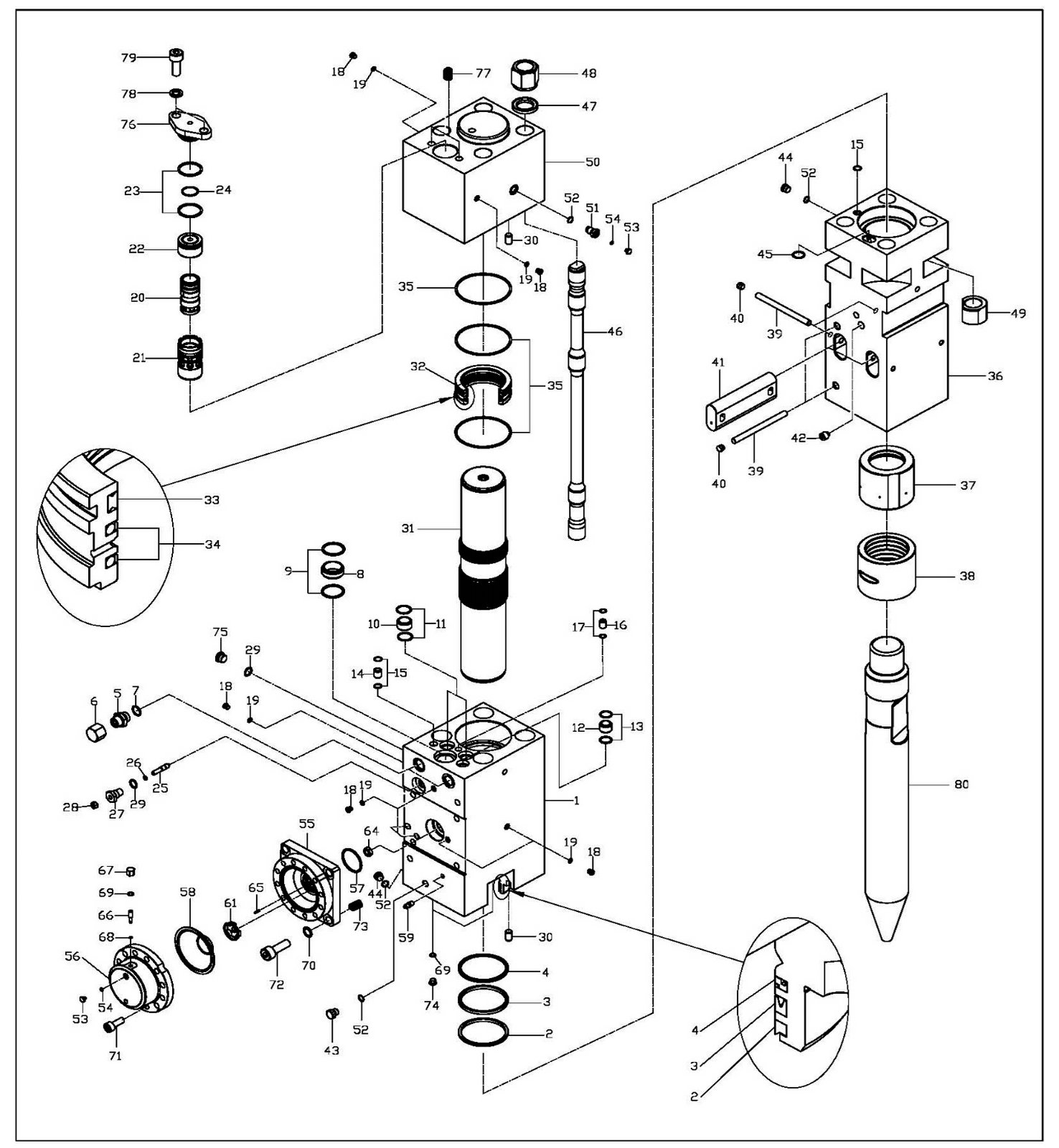

Power Cell

POSPart NumPart NameQtyNotes
1UT-PHBH022C100Cylinder1
2UT-P50DSI14000Dust Seal1cylinder
3UT-P50ISI14000U-Packing1cylinder
4UT-P50HBY14000Buffer-Ring1cylinder
5UT-PF100U1165CHose Adapter2
6UT-PU116500000Union Cap2
7UT-P50P0291B90O-Ring21B P29(hose adapter 2)
8UT-P50TE702800Teflon Bushing1
9UT-P50P0601B90O-Ring21B P60(tefron)
10UT-P50TE462800Teflon Bushing2
11UT-P50P0401B90O-Ring41B P40(tefron)
12UT-P50TE382800Teflon Bushing1
13UT-P50P0321B90O-Ring21B P32(tefron)
14UT-P50TE242800Teflon Bushing1
15UT-P50P0201B90O-Ring31B P20(tefron, front head)
16UT-P50TE202800Teflon Bushing1
17UT-P50P0161B90O-Ring21B P16(tefron)
18UT-P7000140RO Plug8PF 1/4''-19(cylinder6, headcap2)
19UT-P50P0111B90O-Ring81B P11(cylinder6, headcap2)
UT-PHBA220VVSTValve Set1 set20,21,22,23,24
20UT-PHBA220VE00Valve1
21UT-PHBA220VB00Valve Bushing1
22UT-PHBA220VC00Valve Cap1
23UT-P50P0651B90O-Ring21B P65(v/cap1, v/cover1)
24UT-P50P0451B90O-Ring11B P45(v/cap)
Adjuster Set1 set25,26,27,28,29
25UT-PHBA220AD071Adjuster1
26UT-P50P0101B90(A)O-Ring11B P10A(adjuster)
27UT-PHBA220AH046Adjuster Holder1
28UT-PHBA220AN010Adjuster Nut1
29UT-P50P0241B90O-Ring21B P24(adjuster1, cylinder1)
30UT-PHBA22020350Cotter Pin2
31UT-PHBA220P100Piston1
32UT-PHBA220CB00Cylinder Bushing1
33UT-P50GAS13800Gas Seal1c/BUSHING
34UT-P50STE13800Step Seal2c/BUSHING
35UT-P50G1651B90O-Ring31B G165(c/BUSHING2, head cap1)
36UT-PHBA220F100Front Head1
37UT-PHBA220RB00Round Bushing1
38UT-PHBA220FC00Front Cover1
39UT-PHBA220SP00Stopper Pin4
40UT-PHBA220RP00Rubber Plug4
41UT-PHBA220CP00Chisel Pin2
42UT-P6000140Hollow Plug1PT 1/4''
43UT-P5000120Air Plug1PF 1/2''-14
44UT-P7000120RO Plug2PF 1/2''-14
45UT-P50G0351B90O-Ring11B G35(front head)
UT-PHBA220TBSTThrough Bolt Set4 set46,47,48,49
46UT-PHBA220TB00Through Bolt4
47UT-PHBA220TW00Through Washer4
48UT-PHBA220TN00T/bolt Top Nut4
49UT-PHBA220BN00T/bolt Bottom Nut4
50UT-PHBA220H100Head Cap1
Gas Valve Set1 set51,52,53,54
51UT-P0900F120Gas Valve1
52UT-P50P0181B90O-Ring41B P18(gas adapter2,cylinder2)
53UT-P0910M100Gas Valve Cap2
54UT-P50P0081B90O-Ring21B P8(gas valve cap2)
Accumulator Set1 set53,54,55,56,57,58,60,61,62,63,64,65,66,67,68,69,70,71,72,73
55UT-PHBA220A100Accumulator Body1
56UT-PHBA220A200Accumulator Cover1
57UT-P50F0800000Face Seal1#80(acc'body)
58UT-PHBA220AD00Diaphragm1
59UT-P9000140Grease Adapter1
Poppet Valve Set1 set60,61,62,63,64,65
60UT-PHBA220A300Poppet Pin1
61UT-PHBA220A400Poppet Valve1
64UT-PNM100016Poppet Valve Nut1
65UT-PHBA220A700Poppet Valve Pin1
Needle Pin Set1 set66,67,68,69
66UT-PHBA220NP012Needle Pin1
67UT-PHBA220NC012Needle Cap1
68UT-P50P0051B90O-Ring11B P5(needle pin)
69UT-P50P0141B90O-Ring31B P14(needle pin1, cylinder2)
70UT-P2MNR0024Nord-Lock Washer4M24
71UT-P1M1000180050Socket Bolt12M18*P1.5*L50(acc' body)
72UT-P1M1000240075Socket Bolt4M24*P3.0*L75(acc'body-cylinder)
73UT-P70024036Heli Sert4M24*P3.0*D1.5
74UT-P7000380RO Plug2PF 3/8''-19(cylinder2)
75UT-P7000340RO Plug1PF 3/4''-19(cylinder)
76UT-PHBA220VR00Valve Cover1
77UT-P70024036Heli Sert2M24*P3.0*D1.5(HEAD CAP)
78UT-P2MNR0024Nord-Lock Washer2M24 소켓용
79UT-P1M1000240055Socket Bolt2M24*P3.0*L55(v/cover)
Hammer Tool1
80UT-PHBA220CT00Conical Point1
80UT-PHBA220MP00Moil Point1
80UT-PHBA220CC00Crosscut (Wedge H)1
80UT-PHBA220IL00In Line (Wedge V)1
80UT-PHBA220FE00Flat End1
UT-PHBA22SK001Seal Kit, Complete1 set

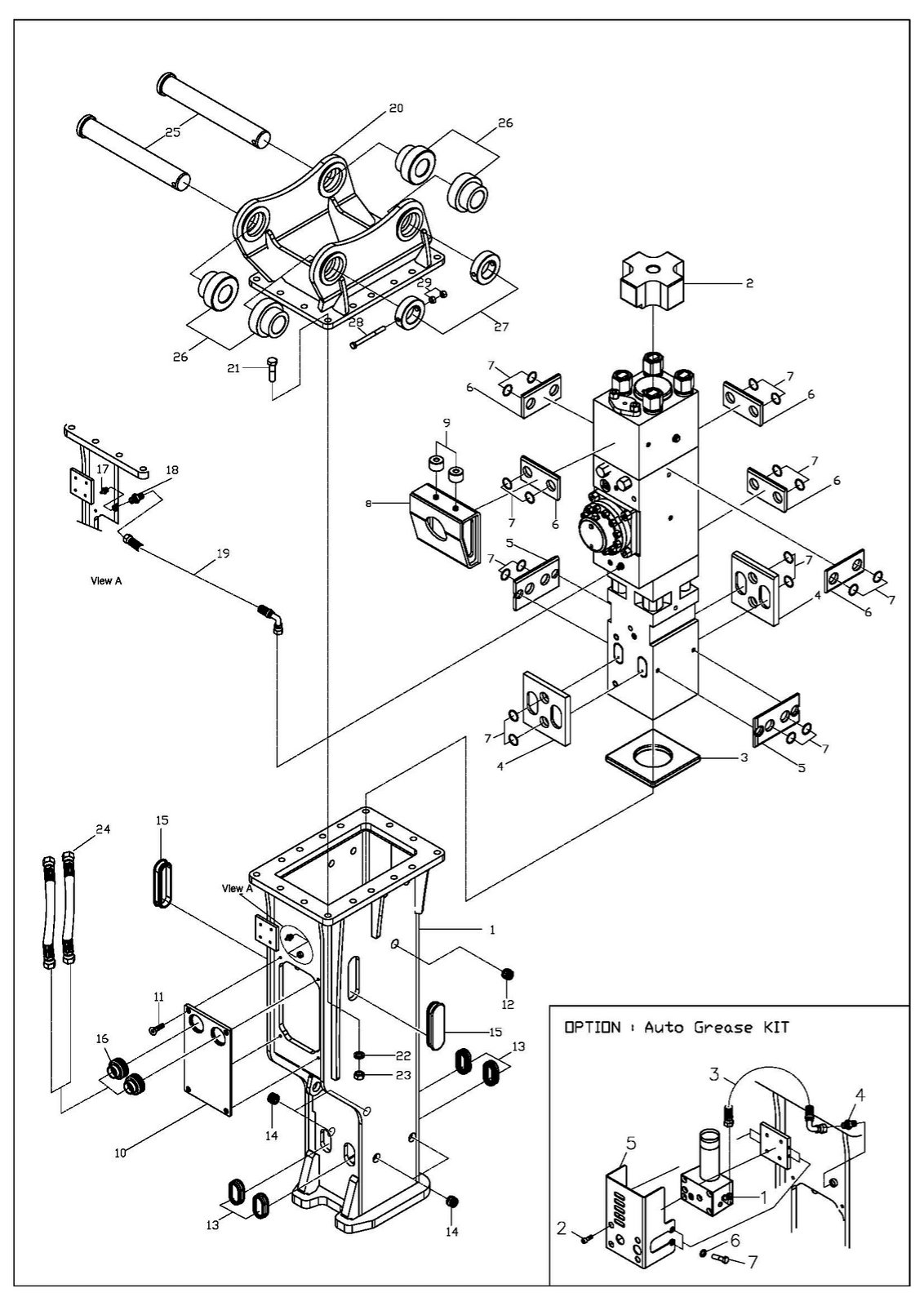

Top Box

POSPart NumPart NameQtyNotes
1UT-PHBTBH022-00-001-0Top Box Bracket1
2UT-PHBTBH022-00-002-0Upper Urethane1270*283*125t
3UT-PHBTBH022-00-003-0Bottom Urethane1288*288*25t
4UT-PHBTBH022-00-005-0Chisel Pin Pad2250*250*15t
5UT-PHBTBH022-00-006-0Stop Pin Pad2150*258*15t
6UT-PHBTBH022-00-007-0Power Cell Pad5220*115*15t
7UT-P50P0441A90O-Ring181A P44
8UT-PHBTBH022-02-000-0Damper Bracket1
9UT-PHBTBH022-00-010-0Stop Damper Urethane2Φ60*40L
10UT-PHBTBH022-00-011-0Housing Cover1274*444*15t
11UT-P1F1000120035Flat Head Socket Bolt4M12*35L(접시렌치)
12UT-PHBTBH012-00-013-0Gas Cover1Φ53*32L
13UT-PHBTBH022-00-016-0Chisel Pin Cover465*114*32L
14UT-PHBTBH022-00-017-0Stop Pin Cover4Φ43*32L
15UT-PHBTBH022-00-018-0Side Adapter Cover2274*444*15t
16UT-PHBTBH022-00-019-0Hose Cover2Φ84*57t
17UT-P8000140Grease Nippel (out)1Not available when option is selected(PT1/4" -19XPF1/4"-19)
18UT-P9000140Grease Adaptor (in)1PT1/4" -19XPF1/4"-19
19UT-PHSG104SS11000Grease Hose (in)1PF1/4(5#)XPF1/4(5#)90°X1WX1000L
20UT-PHBTMC022-CAT320C-0Mounting Cap1CAT320C
21UT-P1H1000240085Hex. Head Bolt16M24*85L
22UT-P1W1000240000Spring Washer16M24
23UT-P1HY000240000Hex Nylon Nut16M24
24UT-PHSHD304SS254044Hydraulic Hose2
25UT-PHBMCH022-P-089590Bracket Pin (Arm, Link)2
26UT-PHBMCH022-B-160079Bracket Pin Bushing4
27UT-PHBMCH022-S-139040Stop Ring2
28UT-P1H1000160200Hex. Bolt2
29UT-P1N1000160000Hex Nut4
1UT-PHBTBH022-00-020-0Auto Grease (C5)1
2UT-P1M1000120095Socket Bolt4M12 x 95L
3UT-PHSAG104SA10500Ag Hose1pf1/4(5#) x pf1/4(5#90°) x 500L
4UT-P9000140Grease Adaptor (out)1pt1/4 x pf1/4
5UT-PHBTBH022-01-027-0Auto Grease Cover1
6UT-P1W1000120000Spring Washer4M12
7UT-P1H1000120020Hex. Bolt4M12
