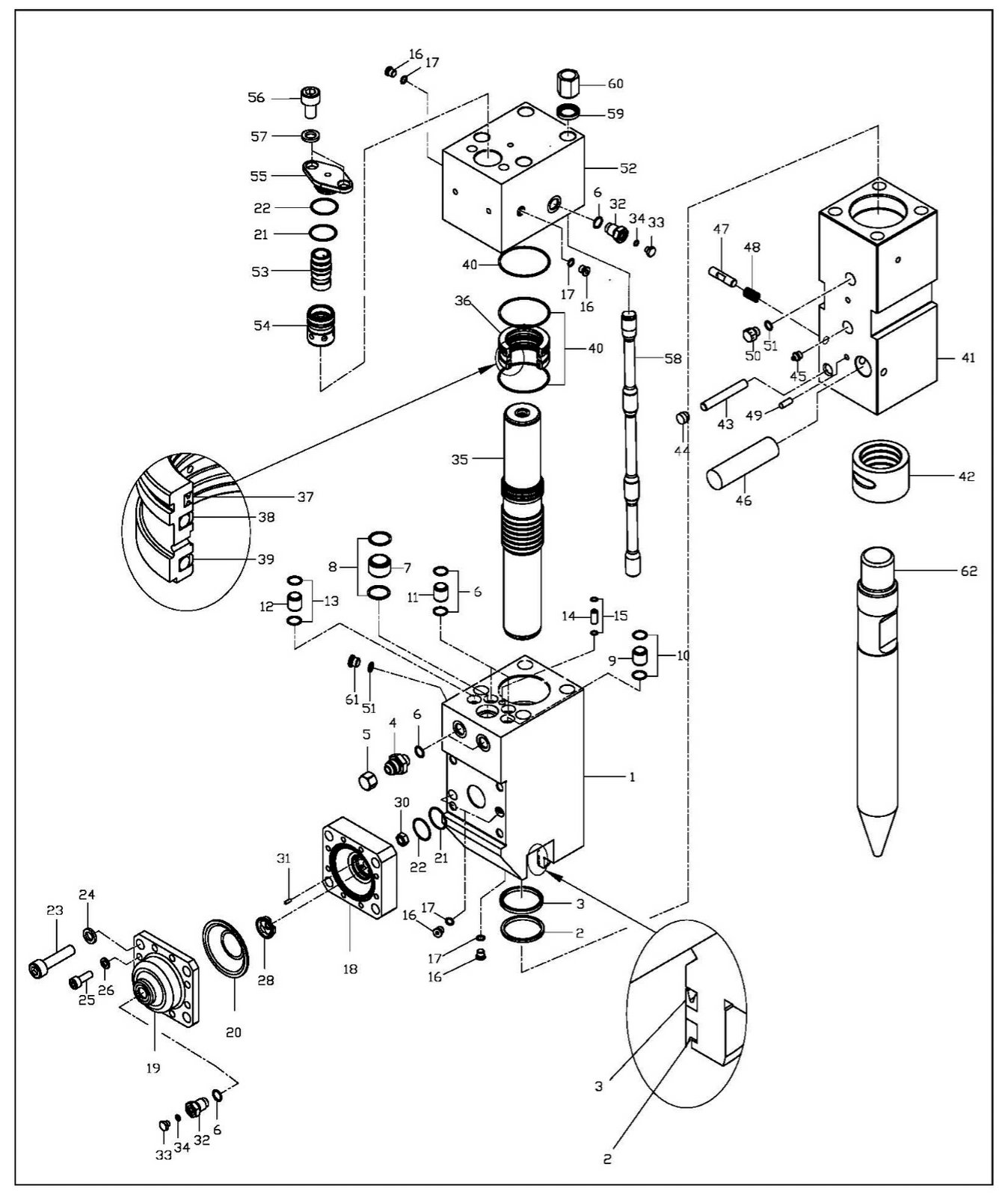

| POS | Part Num | Part Name | Qty | Notes | |
|---|---|---|---|---|---|
| 1 | UT-PHBA400C100 | Cylinder | 1 | ||
| 2 | UT-P50DSI06800 | Dust Seal | 1 | ||
| 3 | UT-P50ISI06800 | U-Packing | 1 | ||
| 4 | UT-PF102U1116C | Hose Adapter | 2 | 1-1/16UNF x PF1/2 | |
| 5 | UT-PU116100000 | Union Cap | 2 | 1-1/16UNF | |
| 6 | UT-P50P0181B90 | O-Ring | 6 | P18 | |
| 7 | UT-P50TE412200 | Teflon Bushing | 1 | Φ41 x 22 | |
| 8 | UT-P50P0351B90 | O-Ring | 2 | P35 | |
| 9 | UT-P50TE242200 | Teflon Bushing | 1 | Φ24 x 22 | |
| 10 | UT-P50P0201B90 | O-Ring | 2 | P20 | |
| 11 | UT-P50TE222200 | Teflon Bushing | 2 | Φ22 x 22(P18) | |
| 12 | UT-P50TE192200 | Teflon Bushing | 1 | Φ19 x 22 | |
| 13 | UT-P50P0151B90 | O-Ring | 2 | P15 | |
| 14 | UT-P50TE102200 | Teflon Bushing | 1 | Φ10 x 22 | |
| 15 | UT-P50P0071B90 | O-Ring | 2 | P7 | |
| 16 | UT-P7000140 | RO Plug | 5 | ||
| 17 | UT-P50P0111B90 | O-Ring | 5 | P11 | |
| 18 | UT-PHBA400A100 | Accumulator Body | 1 | ||
| 19 | UT-PHBA400A200 | Accumulator Cover | 1 | ||
| Accumulator Set | 1 set | 6,18,19,20,21,22,23,24,25,26,28,30,31,32,33,34 | |||
| 20 | UT-PHBA400AD00 | Diaphragm | 1 | ||
| 21 | UT-P50G0401B90 | O-Ring | 2 | G40 | |
| 22 | UT-P50T040T3P0 | Back up Ring | 2 | T40 | |
| 23 | UT-P1M1000180080 | Socket Bolt | 4 | 18x80L | |
| 24 | UT-P2M000018 | Spring Washer | 4 | 18 | |
| 25 | UT-P1M1000120035 | Socket Bolt | 4 | 12x35L | |
| 26 | UT-P2M000012 | Spring Washer | 4 | 12 | |
| 28 | UT-PHBA600A400 | Poppet Valve | |||
| 30 | UT-PNM100012 | Poppet Valve Nut | 1 | ||
| 31 | UT-PHBA600A600 | Poppet Valve Pin | 1 | ||
| 32 | UT-P0900F120 | Gas Valve | 2 | ||
| 33 | UT-P0910M100 | Gas Valve Cap | 2 | ||
| 34 | UT-P50P0081B90 | O-Ring | 2 | P8 | |
| 35 | UT-PHBA400P100 | Piston | 1 | ||
| 36 | UT-PHBA400CB00 | Cylinder Bushing | 1 | ||
| 37 | UT-P50GAS06600 | Gas Seal | 1 | ||
| 38 | UT-P50IVI06600 | U-Packing | 1 | ||
| 39 | UT-P50SLI06600 | Slide Seal | 1 | ||
| Poppet Valve Set | 1 set | 28,30,31 | |||
| Gas Valve Set | 2 set | 6,32,33,34 | |||
| 40 | UT-P50G0851B90 | O-Ring | 3 | G85 | |
| 41 | UT-PHBA400F100 | Front Head | 1 | ||
| 42 | UT-PHBA400FC00 | Front Cover | 1 | ||
| 43 | UT-PHBA600SP00 | Stopper Pin | 1 | ||
| 44 | UT-PHBA600RP00 | Rubber Plug | 1 | Φ20x15L | |
| 45 | UT-P8000140 | Grease Nipple | 1 | ||
| 46 | UT-PHBA400CP00 | Chisel Pin | 1 | ||
| 47 | UT-PHBA400CS00 | Chisel Stopper Pin | 1 | Φ15.5x110L | |
| 48 | UT-PHBA400S000 | Spring | 1 | ||
| 49 | UT-PHBA400SP00 | Spring Pin | 1 | Φ5x40L | |
| 50 | UT-P5000380 | Air Plug | 1 | 43898 | |
| 51 | UT-P50P0141B90 | O-Ring | 2 | P14 | |
| 52 | UT-PHBA400H100 | Head Cap | 1 | ||
| 53 | UT-PHBA400VE00 | Valve | 1 | ||
| 54 | UT-PHBA400VB00 | Valve Bushing | 1 | ||
| 55 | UT-PHBA400VR00 | Valve Cover | 1 | ||
| 56 | UT-P1M1000200040 | Socket Bolt | 2 | 20x40L | |
| 57 | UT-P2MNR0020 | Nord-Rock Washer | 2 | 20 | |
| UT-PHBA400VVST | Valve Set | 1 set | 53,54,55,56,57 | ||
| UT-PHBA400TBST | Through Bolt Set | 1 set | 58,59,60 | ||
| 58 | UT-PHBA400TB00 | Through Bolt | 4 | ||
| 59 | UT-PHBA400TW00 | Through Washer | 4 | ||
| 60 | UT-PHBA400TN00 | Through Bolt Top Nut | 4 | ||
| 61 | UT-P7000380 | RO Plug | 1 | 3/8 | |
| 62 | UT-PHBA400CT00 | Conical Point | 1 | ||
| 62 | UT-PHBA400MP00 | Moil Point | 1 | ||
| 62 | UT-PHBA400WH00 | Crosscut (Wedge H) | 1 | ||
| 62 | UT-PHBA400WV00 | In Line (Wedge V) | 1 | ||
| 62 | UT-PHBA400FE00 | Flat End | 1 | ||
| Hammer Tool | |||||
| UT-PHBA40SK001 | Seal Kit, Complete | 1 set |

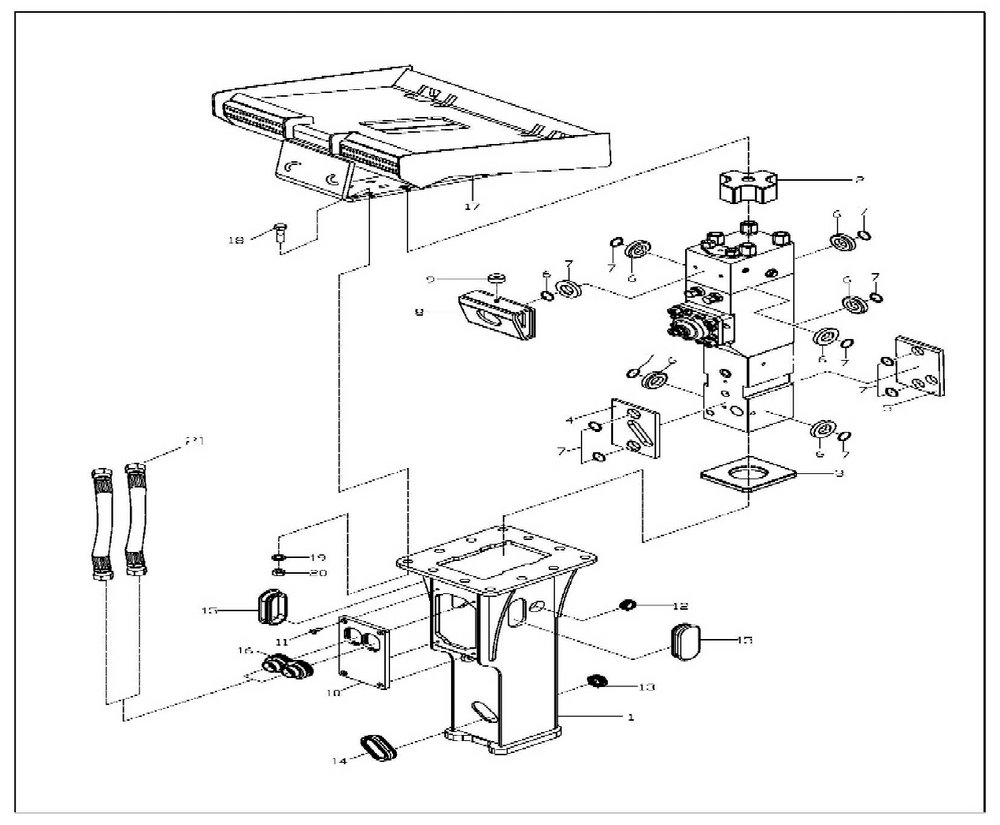

| POS | Part Num | Part Name | Qty | Notes | |
|---|---|---|---|---|---|
| 1 | UT-PHBTBH004-00-001-0 | Top Box Bracket | 1 | ||
| 2 | UT-PHBTBH004-00-002-0 | Upper Urethane | 1 | ||
| 3 | UT-PHBTBH004-00-003-0 | Bottom Urethane | 1 | ||
| 4 | UT-PHBTBH004-00-017-0 | Chisel Pin Pad (F) | 1 | ||
| 5 | UT-PHBTBH004-00-005-0 | Chisel Pin Pad (B) | 1 | ||
| 6 | UT-PHBTBH004-00-007-0 | Power Cell Pad | 7 | ||
| 7 | UT-P50P0341A90 | O-Ring | 11 | P34 | |
| 8 | UT-PHBTBH004-02-000-0 | Damper Bracket | 1 | ||
| 9 | UT-PHBTBH004-00-010-0 | Stop Damper Urethane | 1 | ||
| 10 | UT-PHBTBH004-00-011-0 | Housing Cover | 1 | ||
| 11 | UT-P1F1000100025 | Flat Head Socket Bolt | 4 | 10x25L | |
| 12 | UT-PHBTBH006-00-016-0 | Gas Cover | 1 | Φ53x32 | |
| 13 | UT-PHBTBH006-00-016-0 | Chisel Pin Cover | 1 | ||
| 14 | UT-PHBTBH004-00-016-0 | Chisel Pin Grease Cover | 1 | ||
| 15 | UT-PHBTBH006-00-018-0 | Side Adapter Cover | 2 | ||
| 16 | UT-PHBTBH004-00-019-0 | Hose Cover | 2 | ||
| 17 | UT-PHBTBH004-00-004-0 | Skid Mounting Bracket | 1 | ||
| 18 | UT-P1H1000180650 | Hex Head Bolt | 12 | M18x65L | |
| 19 | UT-P1W1000180000 | Spring Washer | 12 | 18 | |
| 20 | UT-P1NY000180000 | Nylon Nut | 12 | M18 | |
| 21 | UT-PHSHD102SS280044 | Hydraulic Hose | 2 |
