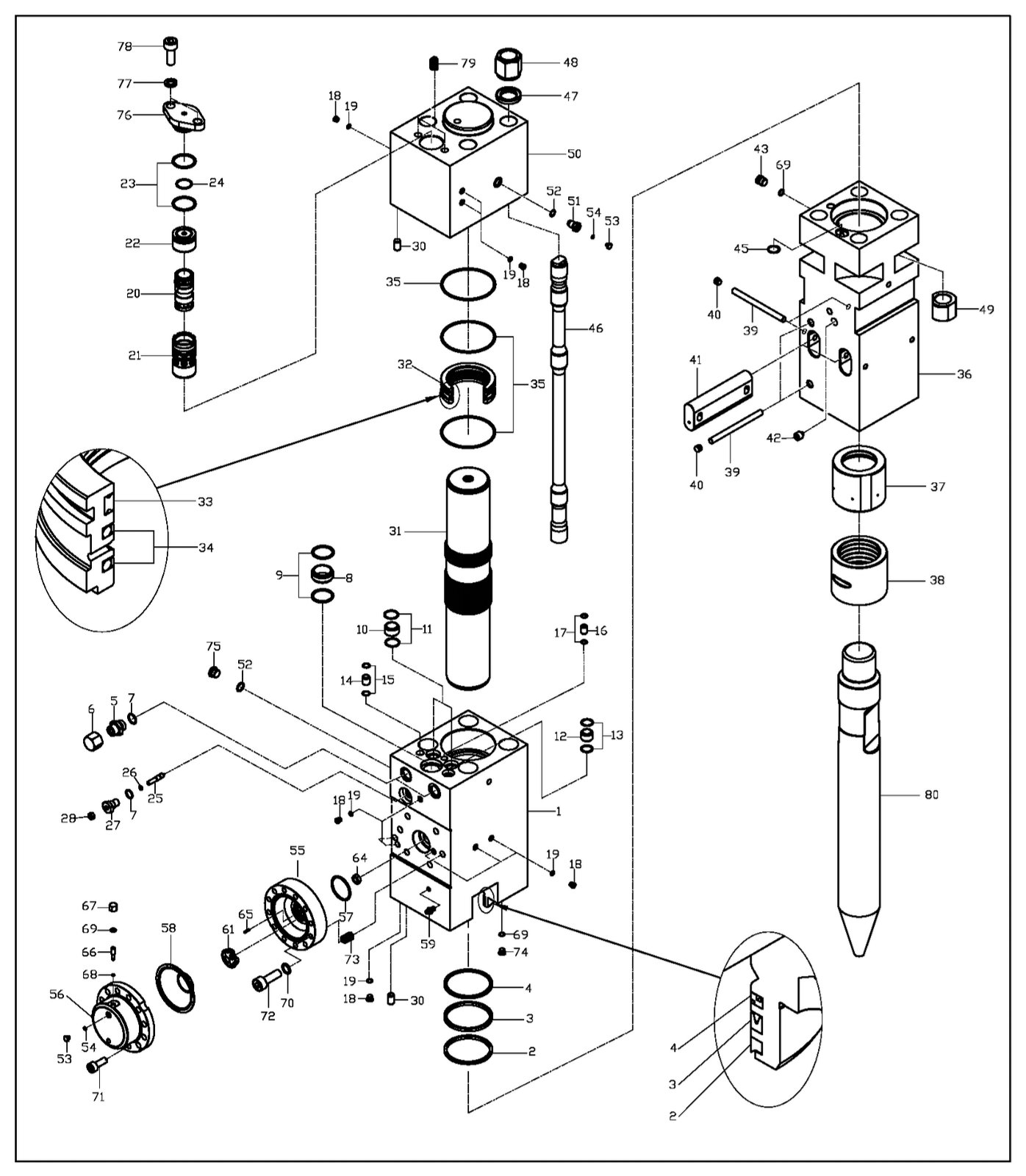

| POS | Part Num | Part Name | Qty | Notes | |
|---|---|---|---|---|---|
| 1 | UT-PHBA120C100 | Cylinder | 1 | ||
| 2 | UT-P50DSI10000 | Dust Seal | 1 | ||
| 3 | UT-P50ISI10000 | U-Packing | 1 | ||
| 4 | UT-P50HBY10000 | Buffer-Ring | 1 | ||
| 5 | UT-PF304U1161C | Hose Adapter | 2 | ||
| 6 | UT-PU116100000 | Union Cap | 2 | PF1 X 1 1/16 UNF | |
| 7 | UT-P50P0241B90 | O-Ring | 3 | P24 | |
| 8 | UT-P50TE482800 | Teflon Bushing | 1 | Φ48X28L | |
| 9 | UT-P50P0421B90 | O-Ring | 2 | P42 | |
| 10 | UT-P50TE442800 | Teflon Bushing | 2 | Φ44X28L | |
| 11 | UT-P50P0380B90 | O-Ring | 4 | P38 | |
| 12 | UT-P50TE322800 | Teflon Bushing | 1 | Φ32X28L | |
| 13 | UT-P50P0261B90 | O-Ring | 2 | P26 | |
| 14 | UT-P50TE192200 | Teflon Bushing | 1 | Φ19X22L | |
| 15 | UT-P50P0151B90 | O-Ring | 2 | P15 | |
| 16 | UT-P50TE122800 | Teflon Bushing | 1 | Φ12X28L | |
| 17 | UT-P50P0091B90 | O-Ring | 2 | P9 | |
| 18 | UT-P7000140 | RO Plug | 10 | PF1/4 | |
| 19 | UT-P50P0111B90 | O-Ring | 10 | P11 | |
| 20 | UT-PHBA120VE00 | Valve | 1 | ||
| 21 | UT-PHBA120VB00 | Valve Bushing | 1 | ||
| 22 | UT-PHBA120VC00 | Valve Cap | 1 | ||
| 23 | UT-P50G0551B90 | O-Ring | 2 | G55 | |
| 24 | UT-P50P0400B90 | O-Ring | 1 | P40 | |
| 25 | UT-PHBA220AD071 | Adjuster | 1 | ||
| 26 | UT-P50P0101B90(A) | O-Ring | 1 | 10A | |
| 27 | UT-PHBA220AH046 | Adjuster Holder | 1 | ||
| 28 | UT-PHBA220AN010 | Adjuster Nut | 1 | ||
| 30 | UT-PHBA12014300 | Cotter Pin | 2 | Φ14X30L | |
| 31 | UT-PHBA120P100 | Piston | 1 | ||
| 32 | UT-PHBA120CB00 | Cylinder Bushing | 1 | ||
| 33 | UT-P50GAS09800 | Gas Seal | 1 | ||
| 34 | UT-P50STE09800 | Step Seal | 2 | ||
| UT-PHBA120VVST | Valve Set | 1 set | 20,21,22,23,24,76,77,78 | ||
| Adjuster Set | 1 set | 7,25.26,27,28 | |||
| 35 | UT-P50G1351B90 | O-Ring | 3 | G135 | |
| 36 | UT-PHBA120F100 | Front Head | 1 | ||
| 37 | UT-PHBA120RB00 | Round Bushing | 1 | ||
| 38 | UT-PHBA120FC00 | Front Cover | 1 | ||
| 39 | UT-PHBA120SP00 | Stopper Pin | 4 | ||
| 40 | UT-PHBA220RP00 | Rubber Plug | 4 | ||
| 41 | UT-PHBA120CP00 | Chisel Pin | 2 | ||
| 42 | UT-P6000140 | Hollow Plug | 1 | ||
| 43 | UT-P5000380 | Air Plug | 1 | ||
| 45 | UT-P50G0251B90 | O-Ring | 1 | G25 | |
| 46 | UT-PHBA120TB00 | Through Bolt | 4 | ||
| 47 | UT-PHBA120TW00 | Through Washer | 4 | ||
| 48 | UT-PHBA120TN00 | T/bolt Top Nut | 4 | ||
| 49 | UT-PHBA120BN00 | T/bolt Bottom Nut | 4 | ||
| 50 | UT-PHBA120H100 | Head Cap | 1 | ||
| 51 | UT-P0900F120 | Gas Valve | 1 | ||
| 52 | UT-P50P0181B90 | O-Ring | 2 | P18 | |
| 53 | UT-P0900M100 | Gas Valve Cap | 2 | ||
| UT-PHBA120TBST | Through Bolt Set | 1 set | 46,47,48,49 | ||
| Gas Valve Set | 1 set | 51,52,53,54 | |||
| 54 | UT-P50P0081B90 | O-Ring | 2 | P8 | |
| 55 | UT-PHBA120A100 | Accumulator Body | 1 | ||
| 56 | UT-PHBA120A200 | Accumulator Cover | 1 | ||
| 57 | UT-P50F0800000 | Face Seal | 1 | ||
| 58 | UT-PHBA120AD00 | Diaphragm | 1 | ||
| 59 | UT-P9000140 | Grease Adapter | 1 | ||
| 61 | UT-PHBA120A400 | Poppet Valve | 1 | ||
| 64 | UT-PNM100012 | Poppet Valve Nut | 1 | ||
| 65 | UT-PHBA220A700 | Poppet Valve Pin | 1 | ||
| 66 | UT-PHBA220NP012 | Needle Pin | 1 | ||
| 67 | UT-PHBA220NC012 | Needle Cap | 1 | ||
| 68 | UT-P50P0051B90 | O-Ring | 1 | P5 | |
| 69 | UT-P50P0141B90 | O-Ring | 3 | P14 | |
| 70 | UT-P1RLW2000 | Ribbed-Lock Washer | 6 | ||
| 71 | UT-P1M1000160050 | Socket Bolt | 6 | ||
| 72 | UT-P1M1000200120 | Socket Bolt | 6 | ||
| 73 | UT-P70020030 | Heli Sert | 6 | 20X30L | |
| Accumulator Set | 1 set | 55,56,57,58,61,64,65,66,67,68,69,70,71,72,73 | |||
| Poppet Valve Set | 1 set | 61,64,65 | |||
| Needle Pin Set | 1 set | 66,67,68,69 | |||
| 74 | UT-P7000380 | RO Plug | 1 | PF3/8 | |
| 75 | UT-P7000120 | RO Plug | 1 | PF1/2 | |
| 76 | UT-PHBA120VR00 | Valve Cover | 1 | ||
| 77 | UT-P2M000020 | Spring Washer | 2 | ||
| 78 | UT-P1M1000200055 | Socket Bolt | 2 | ||
| 79 | UT-P70024036 | Heli Sert | 2 | 24X36 | |
| 80 | UT-PHBA120CT00 | Conical Point | 1 | ||
| 80 | UT-PHBA120MP00 | Moil Point | 1 | ||
| 80 | UT-PHBA120CC00 | Crosscut (Wedge H) | 1 | ||
| 80 | UT-PHBA120IL00 | In Line (Wedge V) | 1 | ||
| 80 | UT-PHBA120FE00 | Flat End | 1 | ||
| Hammer Tool | |||||
| UT-PHBA120SK001 | Seal Kit, Complete | 1 set |

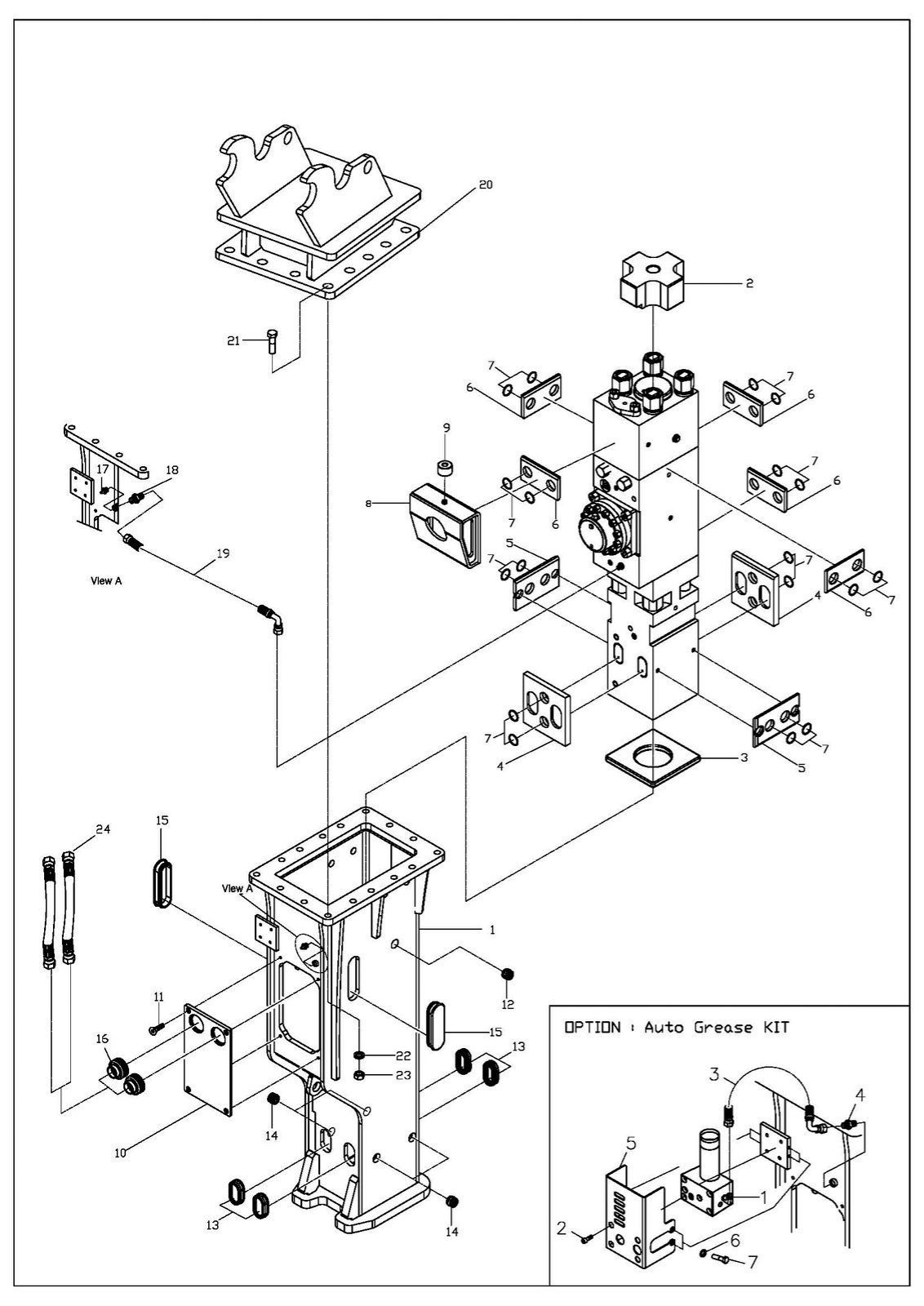

| POS | Part Num | Part Name | Qty | Notes | |
|---|---|---|---|---|---|
| 1 | UT-PHBTBH012-00-001-0 | Top Box Bracket | 1 | ||
| 2 | UT-PHBTBH012-00-002-0 | Upper Urethane | 1 | ||
| 3 | UT-PHBTBH012-00-003-0 | Bottom Urethane | 1 | ||
| 4 | UT-PHBTBH012-00-005-0 | Chisel Pin Pad | 2 | ||
| 5 | UT-PHBTBH012-00-006-0 | Stop Pin Pad | 2 | ||
| 6 | UT-PHBTBH012-00-007-0 | Power Cell Pad | 5 | ||
| 7 | UT-P50P0341A90 | O-Ring | 18 | ||
| 1 | UT-PHBTBH012-00-020-0 | Auto Grease (S2) | 1 | ||
| 2 | UT-P1M1000100085 | Socket Bolt | 4 | ||
| 3 | UT-PHSAG104SA10500 | Ag Hose | 1 | ||
| 8 | UT-PHBTBH012-02-000-0 | Damper Bracket | 1 | ||
| 9 | UT-PHBTBH012-00-010-0 | Stop Damper Urethane | 1 | ||
| 10 | UT-PHBTBH012-00-011-0 | Housing Cover | 1 | ||
| 11 | UT-P1F1000120035 | Flat Head Socket Bolt | 4 | ||
| 12 | UT-PHBTBH012-00-017-0 | Gas Cover | 1 | ||
| 13 | UT-PHBTBH012-00-016-0 | Chisel Pin Cover | 4 | ||
| 14 | UT-PHBTBH022-00-017-0 | Stop Pin Cover | 4 | ||
| 15 | UT-PHBTBH006-00-018-0 | Side Adapter Cover | 2 | ||
| 16 | UT-PHBTBH006-00-019-0 | Hose Cover | 2 | ||
| 17 | UT-P8000140 | Grease Nippel (out) | 1 | Not available when option is selected | |
| 18 | UT-P9000140 | Grease Adaptor (in) | 1 | ||
| 19 | UT-PHSG104SS10600 | Grease Hose (in) | 1 | ||
| 20 | UT-PHBTMC012-K08-0 | Mounting Cap | 1 | KX080 | |
| 21 | UT-P1H1000240085 | Hex. Head Bolt | 14 | ||
| 22 | UT-P1W1000240000 | Spring Washer | 14 | ||
| 23 | UT-P1HY000240000 | Hex Nylon Nut | 14 | ||
| 24 | UT-PHSHD304SS254044 | Hydraulic Hose | 2 | ||
| 4 | UT-P9000140 | Grease Adaptor (out) | 1 |
